EBS

Operating temperature from -40°C (-40°F) to +150°C (+302°F)

10 - 40% weight savings

Increased harness flexibility

Improved aesthetics

Recyclable

Reliable and repeatable installation with up to 50% time savings

Removable for rework

Consistent material usage

Fluid resistant

FUNCTION:

Stacks Image 8332
Stacks Image 8336
Stacks Image 8333
Open all Close all
  • Product Description
    EBS is an innovative, lightweight, highly expandable textile solution designed to provide outstanding bundling and harness protection while delivering a quicker and more repeatable installation.

    EBS is designed to address wire bundling management needs currently serviced by candy stripe, full coverage, and spot taping.

    Through variable construction attributes, a balance of bundling strength, expandability, mechanical protection and visual coverage can be achieved to optimize performance. EBS products are designed to meet all relevant performance criteria found in todays automotive tape standards including heat aging, flammability, fluids resistance, and other environmental cycling.

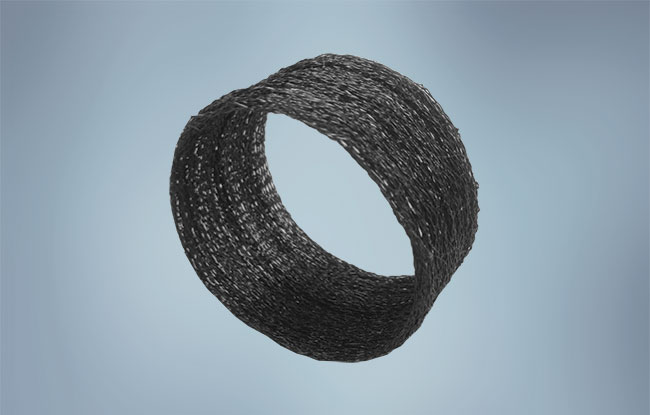

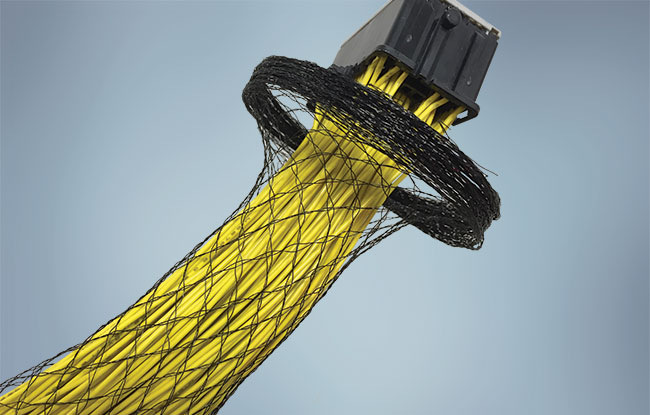

    Delivered in a highly expanded state, EBS effortlessly installs over large connectors then quickly extends and conforms down onto any harness profile easily consolidating the wires and holding them in an organized bundle.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Maximum Opening Diameter
    (mm)
    EBS 6-0
    3 (1/8")
    12 (15/32")
    15 (19/32")
    EBS 10-0
    5 (3/16")
    18 (45/64")
    25 (1")
    EBS 20-0
    15 (19/32")
    28 (1-3/32")
    38 (1-1/2")
    EBS 40-0
    25 (1")
    55 (2-5/32")
    60 (2-3/8")
  • Product Testing

    Performance Data - EBS

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    ISO-19642
    -40ºC to +150ºC (-40°F to +302°F)
    Temperature and Humidity Cycling
    SAE J2192
    Pass
    +80°C and 95% Humidity
    Chemical / Fluid Resistance
    J2192
    Pass
    Hydraulic Fluids, Oil Lubricants, De-icing Fluids
    Flammability
    FMVSS 302

    Pass
    Self-extinguishing
    Fogging / Off Gassing
    DIN 75201
    Pass
    0.10mg

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
