THERM-L-WRAP™

Operating temperature up to +200°C (+392°F)

Excellent radiant and convective heat protection

Self-wrapping design allows for break-outs

Lightweight, flexible & easy to install

Fluid and chemical resistant

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description

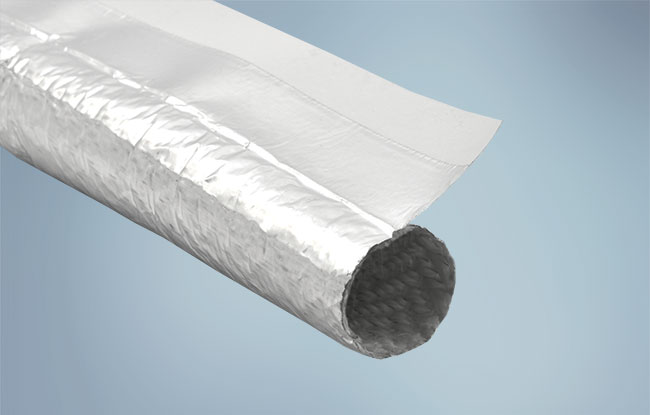

    Therm-L-Wrap™ is a self-wrapping, reflective sleeve designed to provide thermal protection for both radiant and convective heat applications. Composed of a woven fiberglass base fabric and a lamination of aluminum foil, the product can withstand convective heat soaks up to +200°C (+392°F) and simultaneously protect critical components from radiant or reflected heat.

    The self-wrapping design of Therm-L-Wrap allows for quick and easy installation with a self-sealing adhesive reinforcement for permanent closure. The adhesive strip acts as a barrier to dirt and fluids while maintaining the full integrity of the finished aluminized sleeve.
  • Typical Applications

    • Engine compartment applications
    • Wire harnesses
    • Brake & fuel lines
    • Tube, hose & cable assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective laminate

    Inner Layer: Warp Yarn — Fiberglass Multifilament; Fill Yarn — Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    Therm-L-Wrap 6
    6
    Therm-L-Wrap 8
    8
    Therm-L-Wrap 10
    10
    Therm-L-Wrap 13
    13
    Therm-L-Wrap 16
    16
    Therm-L-Wrap 19
    19
    Therm-L-Wrap 25
    25
    Therm-L-Wrap 29
    29
    Therm-L-Wrap 32
    32
    Therm-L-Wrap 38
    38
    * Based on the product’s closure and or self-locating design, there could be variables that impact size selection. Please consult your local sales representative for recommendations and guidance to ensure proper functionality and optimized performance for your application.

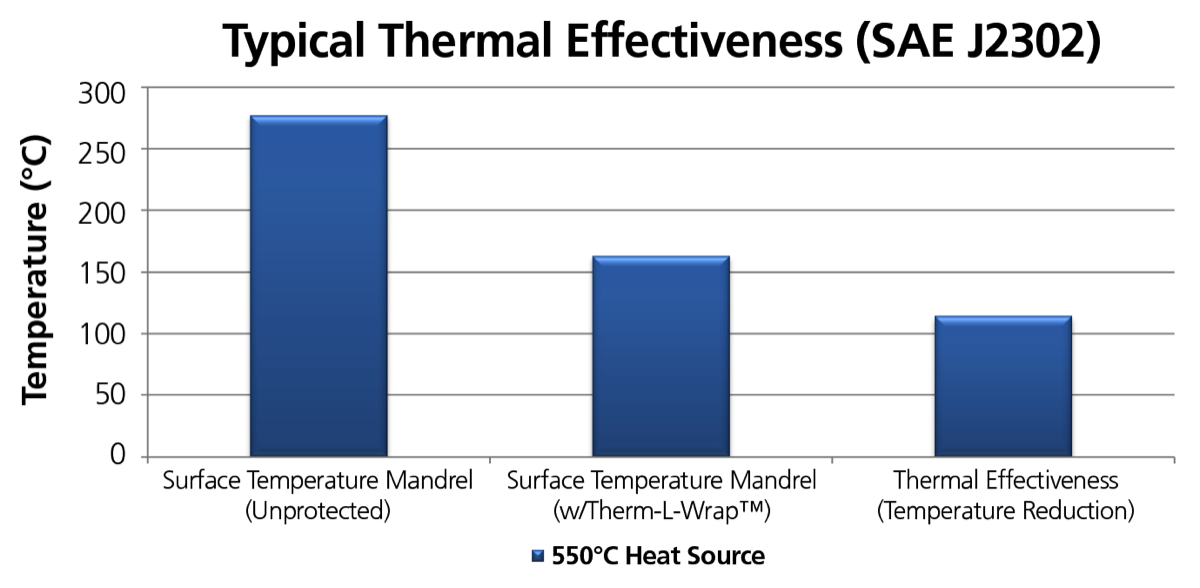

  • Product Testing

    Performance Data – Therm-L-Wrap™

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +225°C (+200°C rating)
    Pass +200°C (+392°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a 538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Tensile Strength - Warp
    ASTM D5035
    Warp: 250 lbf/in. min.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
    Stacks Image 8186
