THERM-L-GARD™ S

Operating temperature up to +232°C (+450°F)

Ease of installation due to wrappable construction

Easily accommodates breakouts

Component accessibility for inspection and/or rework

Outstanding protection against radiant heat

Fray resistant

Extremely Flexible

Fluid & chemical resistant

Conforms to complex component designs

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description
    Therm-L-Gard™ S is a flexible, aluminized, wrappable sleeve designed to protect components in high temperature areas. The outer aluminum finish is highly reflective while the inner layer of fiberglass greatly increases insulating efficiency.

    Therm-L-Gard S is constructed of a high-bulk, woven fiberglass fabric with aluminum foil laminated to its outer surface. The product is manufactured with reversible snaps, which allow the product to be installed after components are assembled. To minimize fraying of the fiberglass yarns, the fabric is treated with a high-temperature resin.

    A low-bulk, woven fiberglass version is also available (Therm-L-Gard™ SL).
  • Typical Applications

    • Hoses
    • Fuel and brake lines
    • Control cables
    • Wire harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    ASTM-D3776: Weight | 717 - 877 g/m

    ASTM-D1777: Thickness | 0.68 - 0.84 mm

    Kane-M Nickel Snaps:
    • Force to close: 160.0 N max.
    • Dorce to open: 40 N min.
  • Availability
    Therm-L-Gard S is available in custom designs to meet specific application requirements. Snaps per sleeve are determined by application. Additional fiberglass constructions are also available.
    Finish is aluminum.
  • Product Testing

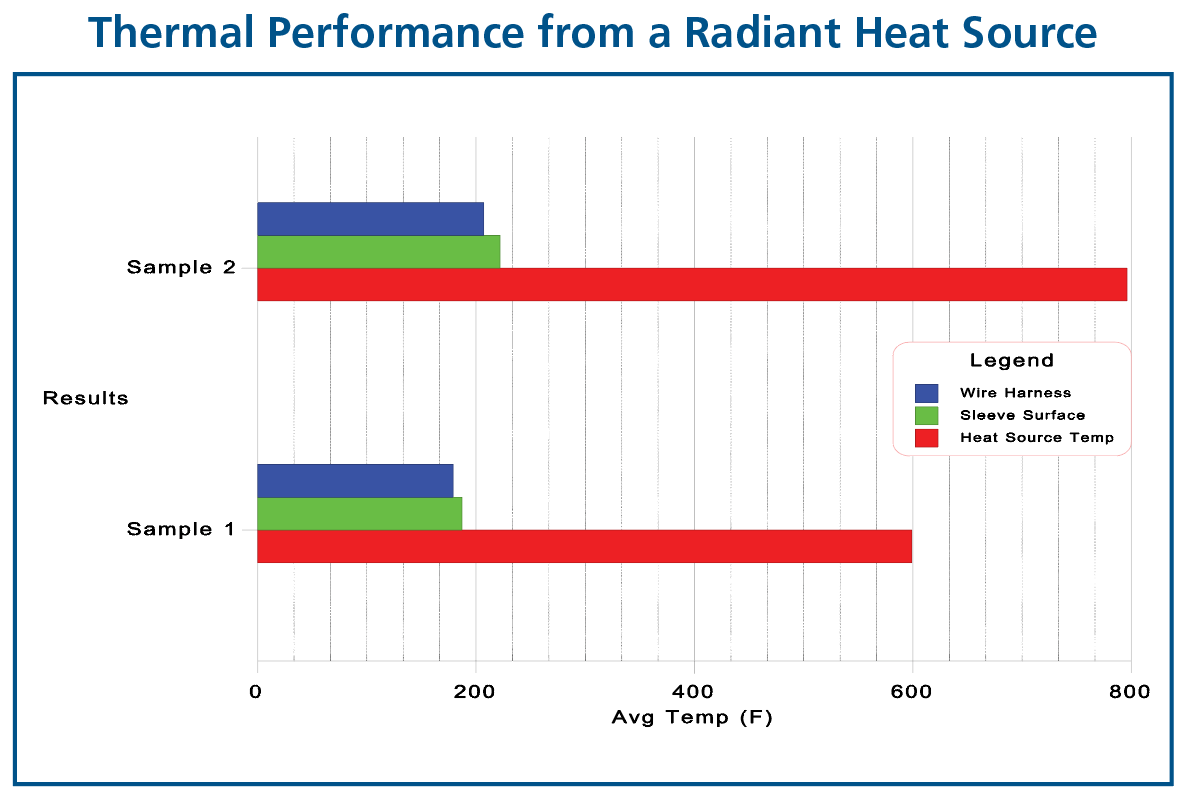

    Performance Data – Therm-L-Gard™ S

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -40°C to +232ºC (-40°F to +450°F)
    Emissivity:
    Temperature Range +57°C to +68°C (+135°F to +155ºF)
    ASTM E408, Method B
    0.14 emissivity
    Flammability
    ASTM D4723, ID 36
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
