NYLOGARD® 2453

Operating temperature up to +125°C (+257°F)

Superior abrasion resistance

Excellent cut-through resistance

High density self-wrapping construction

Integrated hook & loop closure for easy install

Custom printing available

FUNCTIONS:

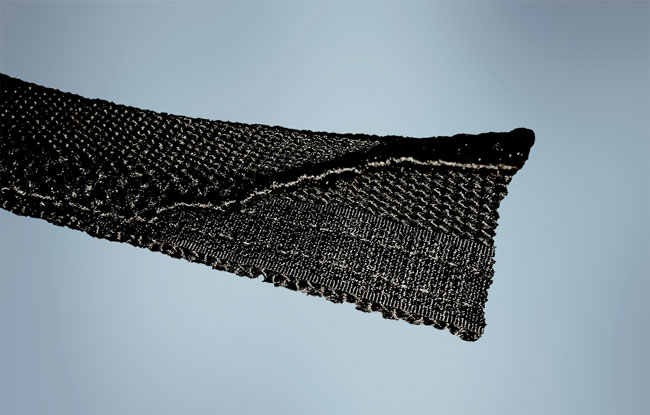

Stacks Image 8083
Open all Close all
  • Product Description
    NyloGard® 2453 is a highly durable, wrappable sleeve constructed from high denier nylon yarns. NyloGard 2453 provides superior abrasion and cut-through protection for hoses, cables and wires for extreme applications and in rugged environments. The hook and loop closure system allows for quick and easy installation as well as removal for necessary maintenance.

    NyloGard 2453’s dense construction provides maximum coverage. These properties extend the service life of the protected component and offer a cost savings associated with decreased component replacements.
  • Typical Applications

    • Wire Harnesses
    • Tube, Hose & Cable Assemblies
    • Fluid Transport Lines
    • High Voltage Applications

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Nylon 6 (PA6) multifilament

    Fill Yarn: Nylon 6 (PA6) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    NyloGard 2453 13-C
    13
    NyloGard 2453 16-C
    16
    NyloGard 2453 19-C
    19
    NyloGard 2453 25-C
    25
    NyloGard 2453 32-C
    32
    NyloGard 2453 38-C
    38
    NyloGard 2453 45-C
    45
    NyloGard 2453 51-C
    51
    C = Color Code: Black - 0

    * Based on the product’s closure and or self-locating design, there could be variables that impact size selection. Please consult your local sales representative for recommendations and guidance to ensure proper functionality and optimized performance for your application.
  • Product Testing

    Performance Data – NyloGard® 2453

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    SAEJ2192
    Pass -70°C (-94°F)
    Fluid Resistance
    SAE J2192
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    2,100 N avg
    2,050 N avg
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
