REFLECTWRAP® 1490

Operating temperature up to +150°C (+302°F)

Excellent radiant and convective heat protection

Abrasion resistant construction

Easy to apply, wrap-around construction

Integrated hook & loop closure for easy install

Adhesive closure tape for maximum protection

Lightweight, flexible, and low profile

Fluid and chemical resisitant

FUNCTIONS:

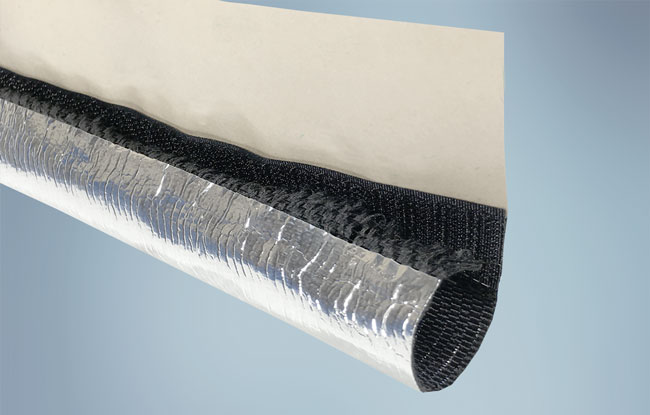

Stacks Image 6847
Open all Close all
  • Product Description
    ReflectWrap® 1490 is a wrappable, aluminized sleeve that provides excellent protection against radiant heat sources for critical engine and exhaust system components. ReflectWrap 1490 incorporates an integral hook and loop closure as well as an adhesive strip closure. This unique design offers ease of installation in closed-end applications as well as resistance to extreme heat and fluids.

    Featuring a woven construction combining lightweight polyester monofilaments and texturized multifilaments, ReflectWrap 1490 has an outer aluminum foil laminate. Initial closure of the sleeve is obtained through the use of an integral hook & loop design. Permanent closure is achieved with a self-adhesive strip. The adhesive seal acts as a resistant barrier to dirt and fluids while maintaining the full integrity of the finished aluminized protective sleeve. These features optimize the overall efficiency of the sleeve and assure longer service life for the protected component.
  • Typical Applications

    • Engine Compartment Applications
    • Wire Harnesses
    • Brake and Fuel Lines
    • Tube, Hose, and Cable Assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Reflective laminate

    Inner Layer: Warp Yarn — Polyester (PET) monofilament; Fill Yarn — Polyester (PET) multifilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter (mm)
    ReflectWrap 1490 13
    13
    ReflectWrap 1490 19
    19
    ReflectWrap 1490 25
    25
    ReflectWrap 1490 32
    32
    ReflectWrap 1490 35
    35
    ReflectWrap 1490 38
    38
    ReflectWrap 1490 45
    45
    ReflectWrap 1490 51
    51
    * Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.
    Availability

    Standard sizes are listed here, Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Please consult your local sales representative for regional packaging details and standards.

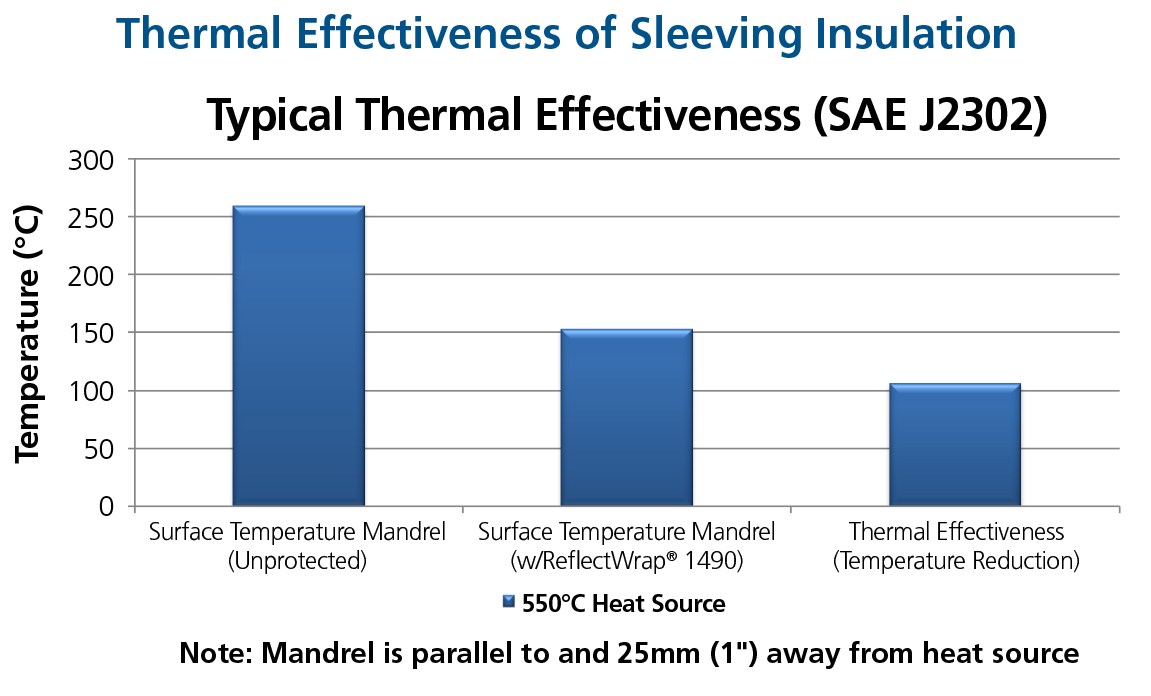

  • Product Testing

    Performance Data – ReflectWrap® 1490

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Thermal Endurance
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Pass
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
