THERMOTUBIX®
Operating temperature:
-54ºC to +260ºC
(-65ºF to +500ºF)
Fire protection up to +1100°C (+2012°F)
Flexibility to -54°C (-65°F)
EN 45545-2
ASTM E-162
ASTM E-662
BSS 7239
SMP 800-C
Resistance to hydraulic fluids and lubricating oils
FUNCTION:
Open all Close all
-

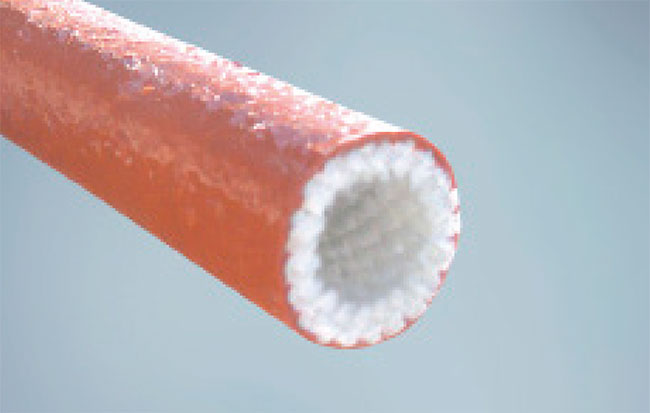

Product DescriptionThermotubix® is a thickwall braided fiberglass sleeving coated with a specially compounded, flame retardant silicone rubber. This product can be easily installed on cables and hoses and expands to pass over fittings and couplings.
Thermotubix grade offers an effective protection against sustained high temperatures, flames and molten metal splashes that can seriously damage electrical cables and hydraulic, gas and lubricant supply lines.
The construction of Thermotubix ensures an excellent fire protection for tubing up to +1100ºC (+2012°F) peak temperature.
This product provides thermal protection against internal and external hazards in a variety of industries, including aeronautics, naval, iron and steel, and automotive.

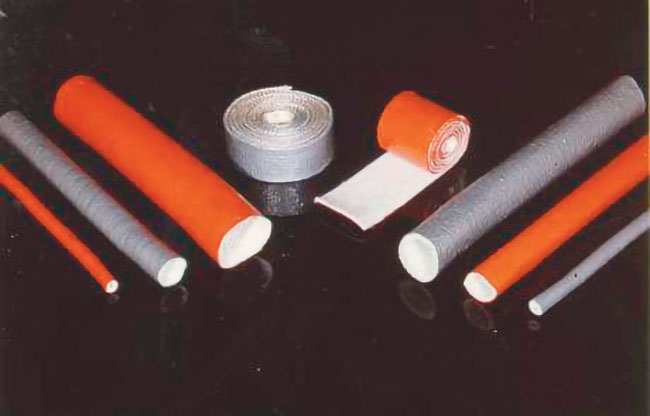

There is also a coated fiberglass tape, called Thermobande™, available. This is used for the fire protection of tubing after the fitting of end terminations. -
Datasheet Downloads
-
Standard Sizes
Product Specifications
Commercial Part NumberInternal Diameter
mm (in)Wall Thickness
mm (in)Maximum Mass
g/m (lb/ft)NATO
SpecificationsStandard Packaging
m (ft)Thermotubix 66 (1/4")4 (9/64")120 (0.08)—30 (90)Thermotubix 88 (15/16")4 (9/64")130 (0.09)5970-14-455-231830 (90)Thermotubix 9.59.5 (3/8")4 (9/64")150 (0.10)5970-14-455-232230 (90)Thermotubix 12.712.7 (1/2")4 (9/64")210 (0.14)5970-14-455-232430 (90)Thermotubix 1616 (1/8")4 (9/64")300 (0.20)5970-14-413-621230 (90)Thermotubix 1919 (3/4")4 (9/64")330 (0.22)5970-14-413-621330 (90)Thermotubix 2222 (7/8")4 (9/64")390 (0.26)5970-14-413-621430 (90)Thermotubix 2525 (1")4 (9/64")490 (0.33)5970-14-413-621515 (50)Thermotubix 2929 (1-1/8")4 (9/64")520 (0.35)—15 (50)Thermotubix 3232 (1-1/4")4 (9/64")550 (0.37)5970-14-413-621615 (50)Thermotubix 3838 (1-1/2")4 (9/64")710 (0.48)5970-14-413-621715 (50)Thermotubix 4545 (1-3/4")4 (9/64")630 (0.42)5970-14-413-62209 (30)Thermotubix 5151 (2")4 (9/64")710 (0.48)5970-14-413-62219 (30)Thermotubix 5757 (2-1/4")4 (9/64")930 (0.63)5970-14-413-62229 (30)Thermotubix 6464 (2-1/2")4 (9/64")960 (0.65)5970-14-455-23286 (20)Thermotubix 7676 (3")4 (9/64")1290 (0.87)5970-14-455-23316 (20)Thermotubix 8989 (3-1/2")4 (9/64")1520 (1.02)5970-14-455-23326 (20)Thermotubix 101101 (4")4 (9/64")1620 (1.09)5970-14-455-23346 (20)Commercial Part NumberInternal Diameter
mm (in)Wall Thickness
mm (in)NATO
SpecificationsStandard Packaging
m (ft)Thermobande 2525 (1")3 (1/8")—30 (90)Thermobande 5151 (2")3 (1/8")—30 (90)Thermobande 7676 (3")3 (1/8")—30 (90)Thermobande 102102 (4")3 (1/8")—15 (50)Thermobande 127127 (5")3 (1/8")—15 (50)Thermobande 152152 (6")3 (1/8")—15 (50)Part Numbering System
Example
Product NameSizeColorQuantityThermotubix1912 (red iron oxide)30m (90ft) -
Product Testing
Performance Data – Thermotubix®
For optimal viewing experience on a mobile device, rotate to a landscape orientation.
PropertyTest MethodResultOperating Temperature-54ºC (-65°F) to +260ºC (+500°F)Low Temperature FlexibilityASTM D-746-54°C (-65°F)Flammability / Toxicity /
Smoke DensityASTM D-350, Method B
EN 45545-2
ASTM E 662 – ASTM E 162
SMP 800-C – BSS 7239Not inflammable
R22 HL3 R23 HL3 > 64 mm R9 HL3
Pass
PassPeak Temperature+1100°C (+2012°F)Fluid Resistance1 Hour soak in:
Gasoline
Engine oil
Power Steering fluid
Transmission fluid
Coolant
Battery acidNo cracking or degradation resulted
from soak in any of the tested fluid.All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
