EXPANDO® 2621

Operating temperature from -70°C to +125°C (-94°F to +257°F)

UL recognized component

Outstanding protection against abrasion and cut-through

Does not trap heat or humidity

Rot-free

Self-fitting over many shapes and size

Cost effective

FUNCTION:

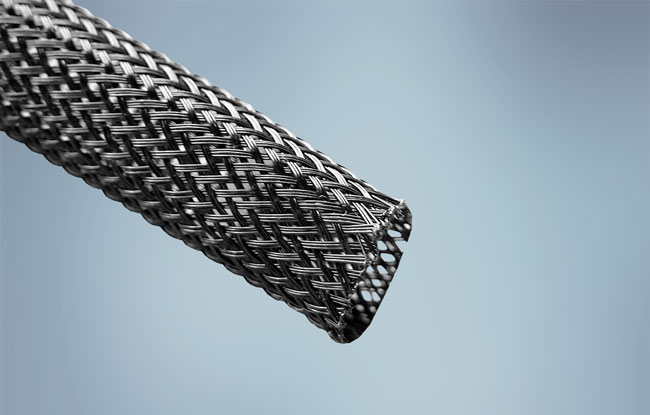

Stacks Image 6847
Open all Close all
  • Product Description
    Expando® 2621 offers maximum resistance to abrasion and impact damage without sacrificing the valuable features provided in traditional Expando products. Rated to +125°C and featuring a dual-monofilament construction, Expando 2621 smoothly blends tougher, nylon (guard) strands with customary resilient polyester (support) strands. The carefully calculated mix of guard strands and support strands provides an excellent balance of key features including toughness, expandability, resilience, and flexibility.

    Bentley-Harris    ® Expando® products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-braid construction of Expando products enables each size to expand to fit several application shapes and sizes. This open-textile construction also makes them highly flexible and resistant to trapping water, heat and humidity.

    Expando 2621 extends the service life of fluid, hydraulic, pneumatic or thermally insulated hoses, and wire harnesses where physical abuse is the major hazard. This product should be considered wherever handling, repeated flexing, abrasion, impact or similar hazards indicate a need for a high performance protective oversleeve. Expando 2621 is ideally suited for applications in electronics, marine, vehicular and industrial environments.
  • Typical Applications

    • Copper Data Cables
    • Cooling Lines
    • Copper Power Cables
    • Fiber Optic Cables
    • Server Rack Routing

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando 2621 3-X
    2 (1/16")
    6 (1/4")
    3.27 (0.0022)
    610 (2000')
    Expando 2621 6-X
    3 (1/8”)
    13 (1/2")
    4.91 (0.033)
    305 (1000')
    Expando 2621 10-X
    6 (1/4")
    13 (1/2")
    11.46 (0.0077)
    152 (500')
    Expando 2621 13-X
    6 (1/4")
    22 (7/8")
    16.37 (0.0110)
    152 (500')
    Expando 2621 19-X
    13 (1/2")
    32 (1-1/4")
    22.92 (0.0154)
    152 (500')
    Expando 2621 25-X
    16 (5/8")
    51 (2")
    29.47 (0.0198)
    76 (250')
    Expando 2621 32-X
    19 (3/4")
    57 (2-1/4")
    31.10 (0.0209)
    76 (250')
    Expando 2621 38-X
    22 (7/8")
    64 (2-1/2")
    40.92 (0.0275)
    76 (250')
    Expando 2621 51-X
    29 (1-1/8")
    76 (3")
    52.38 (0.0352)
    76 (250')
    X = Color Code: Black - 0 | Red - 2 | Orange - 3 | Yellow - 4 | Blue - 6 | Natural - 9

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando 2621
    13
    0 (black)
    152m (500 ft)
  • Product Testing

    Performance Data - Expando® 2621

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -70ºC to +125ºC (-94°F to +257°F)
    Low Temperature Flexibility
    SAE J2192
    -70°C
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    – Jet Fuel JP-4 (MIL-T-5624)
    – Hydraulic Fluid (MIL-H-5606)
    – Lube Oil (MIL-I-7808)
    – De-Ice Fluid (MIL-A-8243)
    – Salt Water (O-S-1926)
    MIL-DTL-23053
    Tensile Retention
    98%
    99%
    99%
    99%
    88%
    Melt Temperature
    ASTM D-3418
    +245°C to +265°C (+473°F to +509°F)

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
