QUIETSLEEVE® 3008

Operating temperature up to +80°C (+176°F)

Tubular acoustic sleeve

Prevents exposure of wires

Excellent noise suppression

Easy to install

Extremely lightweight

Abrasion resistant

Excellent flexibility

FUNCTIONS:

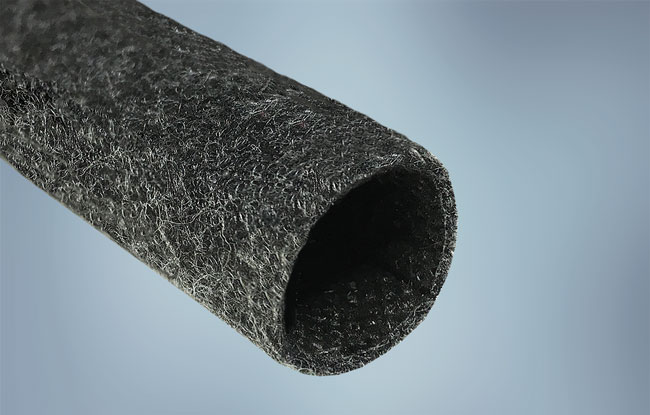

Stacks Image 8083
Open all Close all
  • Product Description
    QuietSleeve® 3008 is a tubular protective sleeve designed to provide excellent noise suppression and abrasion resistance. Composed of a non-woven polyester and polypropylene scrim, the product is lightweight and its thickness provides superior noise suppression performance for rattling/rubbing noise caused by vibrations.

    QuietSleeve 3008 has proper stiffness that facilitates harness insertion work into through holes. The product also has great weatherability, enabling it to be applied to areas in wetting risk such as door harnesses.

    QuietSleeve 3008’s unique design allows for quick and easy bundling of wire and cable assemblies. Compared to multiple component solutions such as vinyl tube and urethane foam, QuietSleeve 3008 provides a single product solution that reduces complexity and installation time.
  • Typical Applications

    • Door harnesses
    • Instrument panel harnesses
    • Seat harnesses
    • Roof harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Polyester (PET) non-woven

    Inner Layer: Polypropylene (PP) scrim
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Size
    (mm)
    QuietSleeve 3008 8
    8
    QuietSleeve 3008 10
    10
    QuietSleeve 3008 13
    13
    QuietSleeve 3008 16
    16
    QuietSleeve 3008 19
    19
    QuietSleeve 3008 25
    25
    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is grey. Additional colors may be available.

    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

    Performance Data – QuietSleeve® 3008

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +105°C (+80°C rating)
    Pass +80°C (+176°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Acoustic Performance
    SAE J2192
    Rubbing: > 25 dB
    Rattling: > 45 dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
