ROUNDIT® 2000NX EMI

Operating temperature from -60ºC to +200ºC (-76ºF to +392ºF)

High performance EMI shielding

ASD EN 6049-008

Excellent cut-through and abrasion resistance

Halogen-free

Self-wrapping design

Ideal for reworking components without disconnecting them

Tracer indicating the maximum operating diameter

Water repellent

Salt Spray Resistant (500 hours)

FUNCTION:

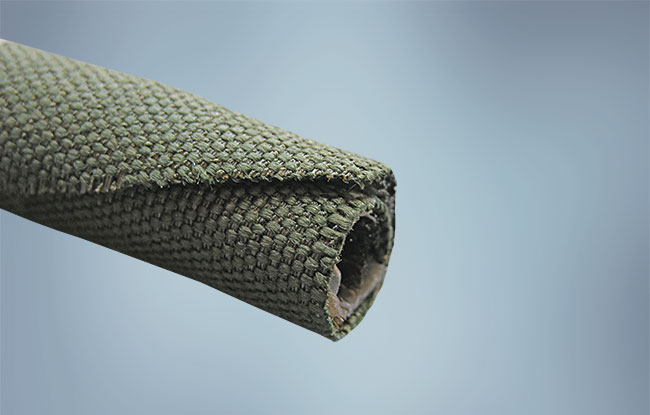

Stacks Image 6847

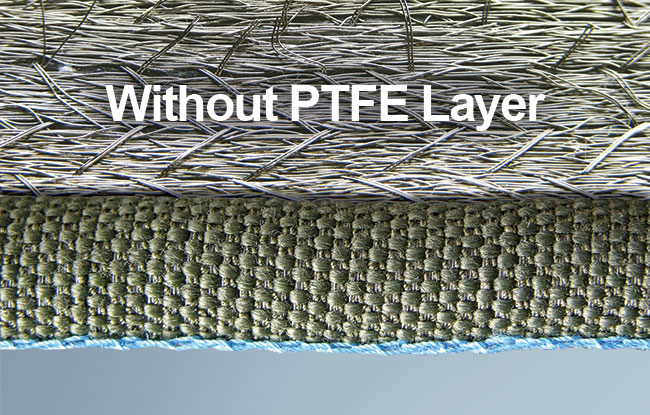

Stacks Image 8119
Stacks Image 8121
Open all Close all
  • Product Description

    ROUNDIT® 2000 NX EMI is a self-wrapping sleeve designed for mechanical protection and EMI shielding of wire and cable bundles. The outer layer, which supplies the abrasion resistance, is manufactured from PPS monofilaments and Nomex® with a water repellent treatment. The inner layer is composed of nickel-plated copper (Cu/Ni), which provides EMI insulation. The outer layer construction with a 100% covering ratio provides excellent cut-through and abrasion resistance.

    ROUNDIT 2000 NX EMI is also available with an internal layer of PTFE tape; allowing wire harnesses to be protected from the inner metal layer.

    The self-wrapping feature allows for quick and easy installation and removal of the product for assembly and maintenance.

    ROUNDIT 2000 NX EMI has many applications in the aeronautical and military industries.

    Nomex is a registered trademark of E.I. DuPont de Nemours.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Max Weight
    (with PTFE layer)
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Continuous Length
    Max Backshell
    Diameter
    mm (in)
    ROUNDIT 2000 NX EMI V* 6-5
    1 (1/32")
    6 (1/4")
    79 (0.053)
    86 (0.058)
    50 (164')
    10 (0.375)
    ROUNDIT 2000 NX EMI V* 11-5
    6 (1/4")
    11 (7/16")
    92 (0.062)
    102 (0.068)
    50 (164')
    14.8 (0.583)
    ROUNDIT 2000 NX EMI V* 14-5
    11 (7/16")
    14 (9/16")
    116 (0.078)
    132 (0.088)
    25 (82')
    20 (0.787)
    ROUNDIT 2000 NX EMI V* 17-5
    14 (9/16")
    17 (11/16")
    149 (0.100)
    165 (0.111)
    25 (82')
    23 (0.906)
    ROUNDIT 2000 NX EMI V* 23-5
    17 (11/16")
    23 (7/8")
    175 (0.117)
    196 (0.132)
    25 (82')
    30.4 (1.197)
    ROUNDIT 2000 NX EMI V* 30-5
    23 (7/8")
    30 (1-3/16")
    235 (0.157)
    262 (0.176)
    25 (82')
    39.3 (1.547)
    ROUNDIT 2000 NX EMI V* 38-5
    30 (1-3/16")
    38 (1-1/2")
    305 (0.204)
    339 (0.228)
    25 (82')
    49 (1.929)

    V* = A : Without internal PTFE layer; V* = B : With internal PTFE layer.yer.

    Part Numbering System

    Example



    Product Name
    Version
    Size
    Color
    Quantity
    ROUNDIT 2000 NX EMI
    B
    6
    5 (green)
    50m
  • Installation Tools

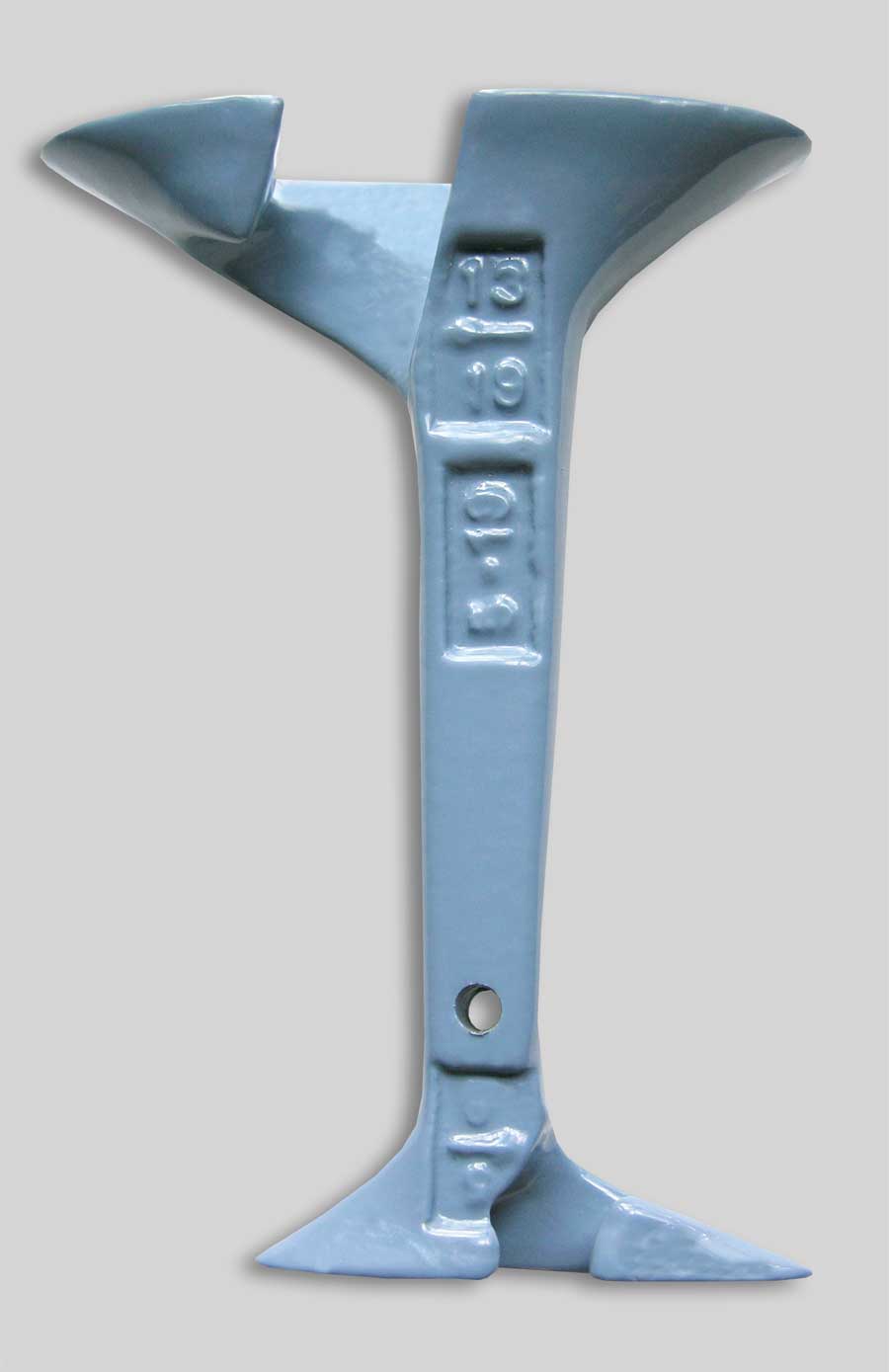

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 NX EMI

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    Thermal endurance & shocks
    -60ºC to +200ºC (-76°F to +392°F)
    Rapid change of temperature
    EN2591-305
    Pass
    Flammability/smoke density/toxicity
    ABD 031 & FAR 25 § 853
    Conforms
    Water Repellency
    EN 6059 Part 305
    Pass
    MECHANICAL
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    CHEMICAL
    Fluid Resistance
    – Jet Fuel: JP-5 (Otan F44)
    – Hydraulic Fluid (Skydrol 500B4)
    – Mineral Oil (MIL-L-7870A)
    – Synthetic Oil (MIL-L-23699)
    – Cleaning Fluids (MIL-L-87936)
    – De-icing Fluid (MIL-A-8243)
    EN 6059 Part 303

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Mold Growth
    prEN 6059 Part 306
    Pass
    EMI PERFORMANCE

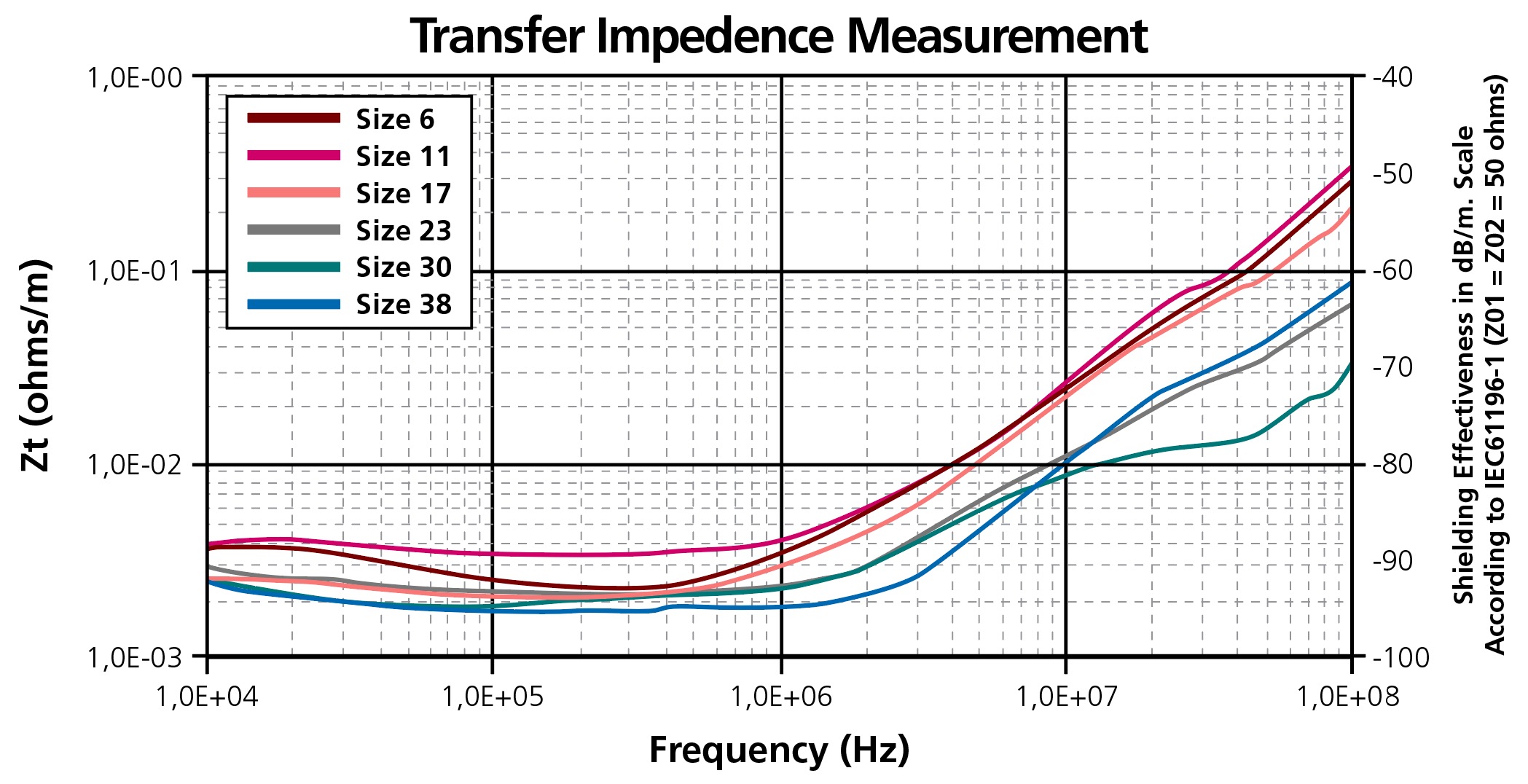

    Transfer impedance
    EC 60512-23-3 (triaxial method)

    Tests made by the Labinal Laboratory
    in France. Report Nº D10-04-061
    made on 5/27/2004

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
