REFLECTWRAP® 1493

Excellent protection against radiant heat

Superior abrasion resistance

Low profile, lightweight, and flexible

Easy to install self-wrapping design

Integrated closure system

FUNCTIONS:

Stacks Image 6847
Open all Close all
  • Product Description

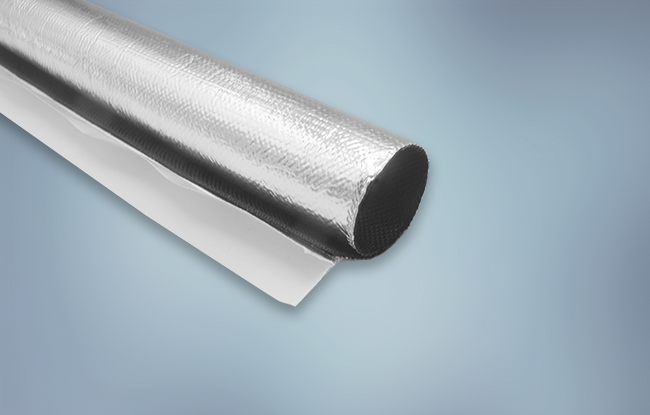

    ReflectWrap® 1493 is a wrappable sleeve comprised of a thermally reflective outer aluminum foil laminated to a durable woven polyester substrate. Combined, this dual function product can be used to protect harnesses and assemblies where routing conditions present both hot spots and touch conditions.

    The self-wrapping design allows for easy installation and the integrated self-sealing closure flap provides permanent closure of the sleeve. The adhesive seal acts as a resistant barrier to dirt and fluids while maintaining the integrity of the finished aluminized protective assembly. These features optimize the overall efficiency of the sleeve and assure longer service life for the protected component.
  • Typical Applications

    • “Touch conditions” near radiant heat sources
    • Wire Harnesses
    • Tube, Hose, and Cable Assemblies

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter
    Recommended Application Range* mm (in)
    Min Ø
    Max Ø
    5

    At end user's discretion

    8
    8

    6

    10
    10

    8

    13
    13

    10

    16
    16

    13

    19
    19

    16

    23
    25

    19

    30
    29

    25

    35
    32

    29

    39

    *Max diameter is defined as having a 100° - 110° overwrap depending on nominal diameter. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sizing is at the discretion of the end user.

    A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

  • Construction and Typical Product Characteristics
    Warp Yarn: Polyester (PET) Multifilament

    Fill Yarn: Polyester (PET) Monofilament

    Outer Layer: Aluminum
  • Installation Guide / Tools
  • Product Testing

    Performance Data – ReflectWrap® 1493

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    240 hours at +200°C (+392°F)
    No degradation or delamination
    Thermal Endurance
    25mm above +538°C (+1000°F) heat source for 6 hours
    Pass
    No degradation or delamination
    Thermal Effectiveness
    SAE J2302
    See graph below
    Low Temperature Flexibility
    SAE J2192
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
    Stacks Image 8172
