ROUNDIT® 2000 V0

Operating temperature from -50ºC to +150ºC (-58ºF to +302ºF)

Self-extinguishing

Halogen-free

Self-wrapping design

EN45545-2

NFPA 130
   – ASTM E-162
   – ASTM E-662

BSS 7239

SMP 800-C

Easy to apply and remove

Excellent abrasion resistance

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

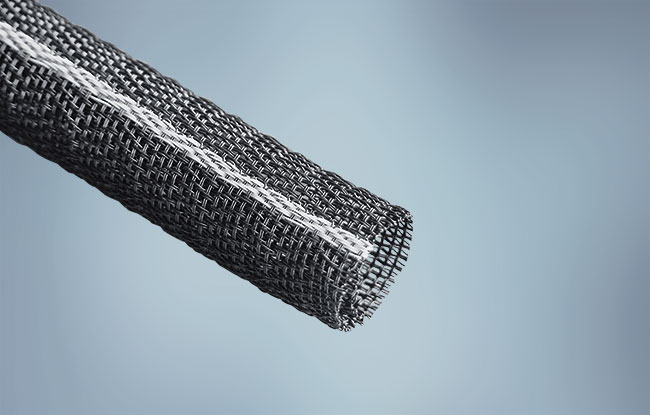

    ROUNDIT® 2000 V0 is a wrappable sleeving manufactured from flame retardant polyester monofilaments. ROUNDIT 2000 V0 is designed for mechanical protection and maintenance of wire and cable bundles and has an excellent cut-through and abrasion resistance.

    The self-wrapping feature of ROUNDIT 2000 V0 allows for quick and easy installation and removal of the product for assembly and maintenance. ROUNDIT 2000 V0 may be installed or removed without any manipulation of connectors or fittings and is an ideal solution where breakouts are necessary. Its wrappable construction allows stocking of a limited range of sizes to cover a wide range of diameters.

    ROUNDIT 2000 V0 has many applications in the railway, marine and electronic industries.

  • Typical Applications

    • Protection of electrical components, wires and cables
    • Ideal for reworking components without disconnecting them

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Max Wire Harness Size
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 V0 5-0
    5 (3/16")
    1 (1/32")
    5 (3/16")
    7 (0.005)
    150 (492')
    ROUNDIT 2000 V0 8-0
    8 (5/16")
    5 (3/16")
    8 (5/16")
    9 (0.006)
    100 (328')
    ROUNDIT 2000 V0 13-0
    13 (1/2")
    8 (5/16")
    13 (1/2")
    14 (0.009)
    25 (82')
    ROUNDIT 2000 V0 19-0
    19 (3/4")
    13 (1/2")
    19 (3/4")
    18 (0.012)
    25 (82')
    ROUNDIT 2000 V0 25-0
    25 (1")
    19 (3/4")
    25 (1")
    24 (0.016)
    25 (82')
    ROUNDIT 2000 V0 29-0
    29 (1-1/8")
    25 (1")
    29 (1-1/8")
    28 (0.019)
    25 (82')
    ROUNDIT 2000 V0 38-0
    38 (1-1/2")
    29 (1-1/8")
    38 (1-1/2")
    35 (0.023)
    25 (82')
    ROUNDIT 2000 V0 50-0
    50 (2")
    38 (1-1/2")
    50 (2")
    58 (0.039)
    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 V0
    8
    0 (black)
    100m
  • Installation Tools

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 V0

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    -50ºC to +150ºC
    (-58°F to +302°F)
    Filament Melt Temperature
    +250°C (+482°F)
    Fire / Smoke / Toxicity
    EN 45545-2
    ASTM E 662 – ASTM E 162
    SMP 800-C – BSS 7239
    R22 HL3 R23 HL3
    Pass
    Pass
    Fluid Resistance
    – Hydraulic fluids: NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C (+158°F)
    No visible degradation or alteration
    after being exposed.

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
