THERM-L-GARD™ V

Operating temperature up to +175°C (+347°F)

Maintains a round profile against radiant heat

Fray resistant

Excellent thermal protection

Attractive appearance

Customizable for increased installation benefit

FUNCTIONS:

Stacks Image 6847
Stacks Image 8593
Open all Close all
  • Product Description
    Therm-L-Gard™ V is an aluminized, high bulk sleeve designed to provide thermal protection in high temperature environments. The outer layer is composed of an aluminum and glass fabric with the inner layer being composed of non-woven polyester.

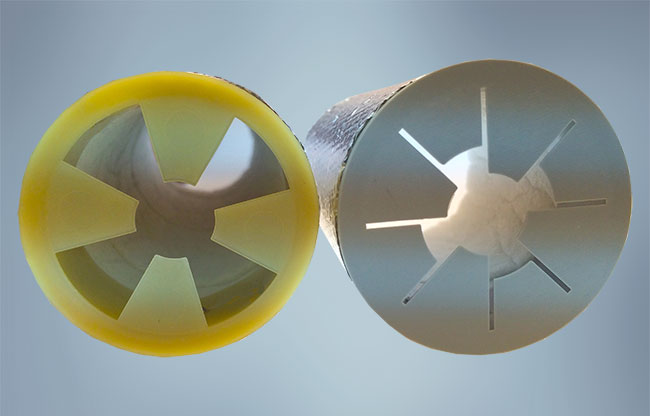

    Therm-L-Gard V maintains a round profile creating an air gap that maximizes the level of protection for sensors or connectors. Therm-L-Gard V is also available with a four or eight tine end cap that’s engineered to accommodate a range of convolute sizes while allowing flexibility in the installation process.

    Therm-L-Gard V is customizable (angle cuts, notches, slits, etc.) which provides additional installation benefits by maximizing the protected area along with helping to locate the product in complex applications.
  • Typical Applications

    • Sensors
    • Connectors

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Outer Layer: Aluminum / Fiberglass

    Inner Layer: Polyester (PET) non-woven
  • Availability
    Therm-L-Gard™ V is a customizable product that is available in inner diameters of 25mm, 32mm and 38mm and cut to your specification. Color is aluminum (silver).
    Please contact your sales representative for availability.
  • Product Testing

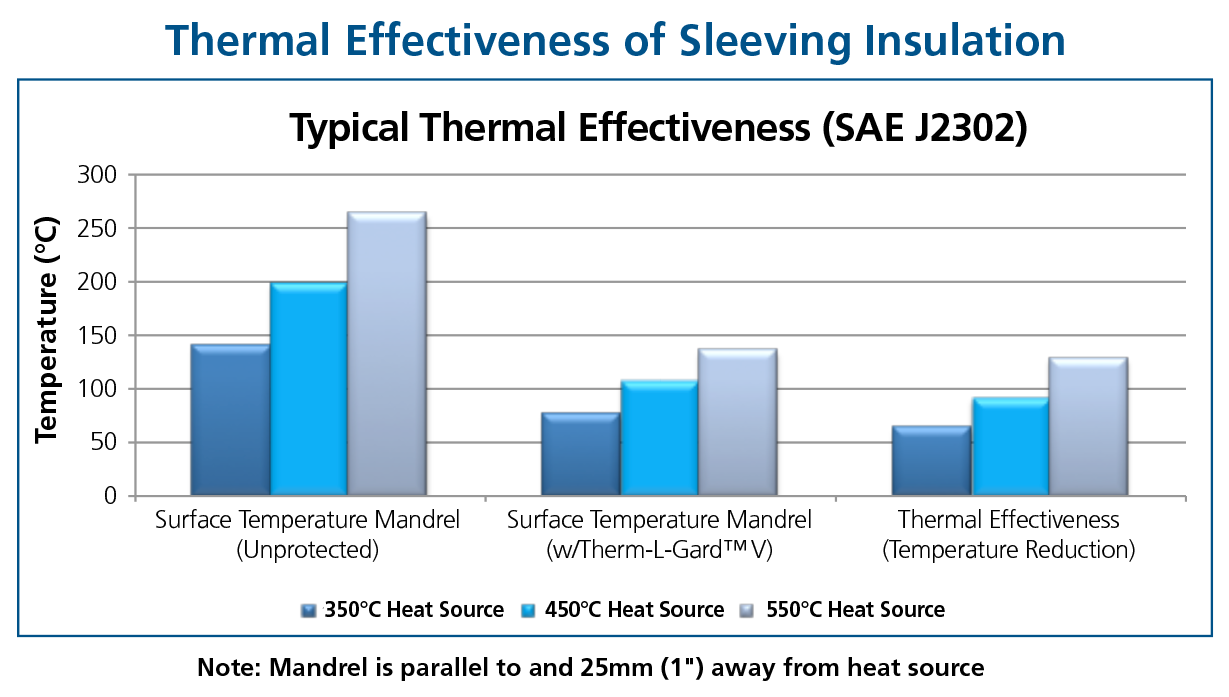

    Performance Data – Therm-L-Gard™ V

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    168 hours at +175°C (+347°F)
    No degradation
    Thermal Endurance
    BH100-503
    No degradation or delamination
    (25mm above a +538°C heat source for 6 hours)
    Low Temperature Resistance
    BH100-016C
    Pass -40°C (-40°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
