ROUNDIT® 2000NX GRIP

Operating temperature from -60ºC to +200ºC (-76ºF to +392ºF)

Excellent cut-through and abrasion resistance

Lightweight construction

FAR Part 25.853

Halogen-free

Self-wrapping design

Built-in attachment mechanism

Easy to apply and remove

Ideal for reworking components without disconnecting them

Reduces the space needed to install and secure wire harnesses on the structure

Water repellent

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® 2000 NX GRIP is a woven combination of Nomex® and PPS (polyphenylene sulfide). The Nomex/PPS blend in a flat weave construction gives ROUNDIT 2000 NX GRIP a rugged yet smooth texture and appearance for high temperature bundling and abrasion resistance. This product is rated to +200ºC (+392ºF) and is non-halogenated.

    ROUNDIT 2000 NX GRIP is ideal for commercial and defense aircraft applications due to its excellent abrasion resistance and halogen-free qualities.

    ROUNDIT 2000NX GRIP features a sewn loop textile attachment method which enables in conjunction with an adhesive hook installed on the aircraft structure to locate and attach the wire harness. Thanks to its unique construction, ROUNDIT 2000NX GRIP reduces the space needed between the wire harness and the structure as compared to standard fixation methods.

    ROUNDIT® products are tough, lightweight oversleeves used to bundle and protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The self-wrapping feature of ROUNDIT products allows for quick and easy application and removal of the product for assembly and maintenance. The product may also be applied or removed without disturbing connectors or fittings.

    Nomex is a registered trademark of E.I. DuPont de Nemours.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 NX GRIP 5-5

    1 (1/32")

    5 (3/16")

    21 (0.0141)

    150 (492')
    ROUNDIT 2000 NX GRIP 8-5

    5 (3/16”)

    8 (5/16”)

    25 (0.0168)

    100 (328’)
    ROUNDIT 2000 NX GRIP 13-5

    8 (5/16”)

    13 (1/2”)

    34 (0.0228)

    50 (164’)
    ROUNDIT 2000 NX GRIP 19-5

    13 (1/2”)

    19 (3/4”)

    46 (0.0309)

    25 (82’)
    ROUNDIT 2000 NX GRIP 25-5

    19 (3/4”)

    25 (1”)

    63 (0.0423)

    25 (82’)
    ROUNDIT 2000 NX GRIP 32-5

    25 (1")

    32 (1-1/4”)

    78 (0.0524)

    25 (82’)
    ROUNDIT 2000 NX GRIP 40-5

    32 (1-1/4”)

    40 (1-1/2”)

    90 (0.0605)

    25 (82’)

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 NX GRIP
    5
    5 (green)
    150m
  • Installation Tools

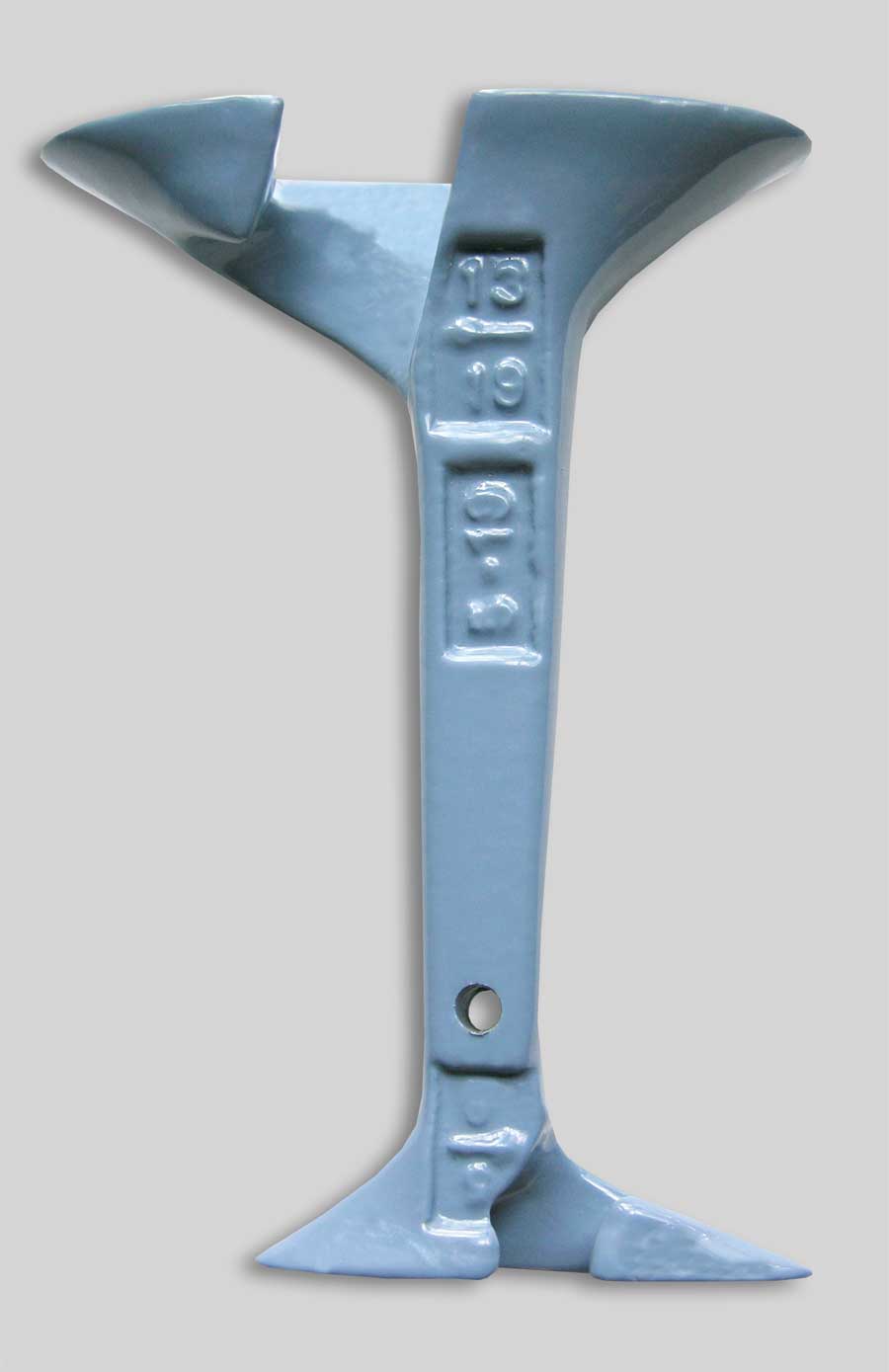

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 NX GRIP

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    Thermal endurance & shocks

    For a short period (few hours)
    -60ºC (-76°F) to +200ºC (392°F)

    +220ºC (+428°F)
    Classification Flammability/
    Smoke Density/Toxicity
    ABD 031 & FAR 25 § 853
    EN2825 & 2826
    Conforms
    Water Repellency
    EN 6059 Part 305
    Pass
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Dynamic Cut-through
    EN 6059 Part 405
    Pass
    Fluid Resistance
    – Jet Fuel: JP-5 (Otan 144)
    – Hydraulic Fluid (Skydrol 500B4)
    – Mineral Oil (MIL-L-7870A)
    – Synthetic Oil (MIL-L-23699)
    – Cleaning Fluids (MIL-L-87936)
    – De-icing Fluid (MIL-A-8243)
    EN 6059 Part 303

    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Good resistance
    Mold Growth
    EN 6059 Part 306
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
