FLEXFIT® 2114

Operating temperature -50°C to +150°C (-58°F to +302°F)

Slightly tubular sleeve

Excellent abrasion resistance

Excellent flexibility

Self-extinguishing

Fluid resistant

Aesthetic appearance

FUNCTIONS:

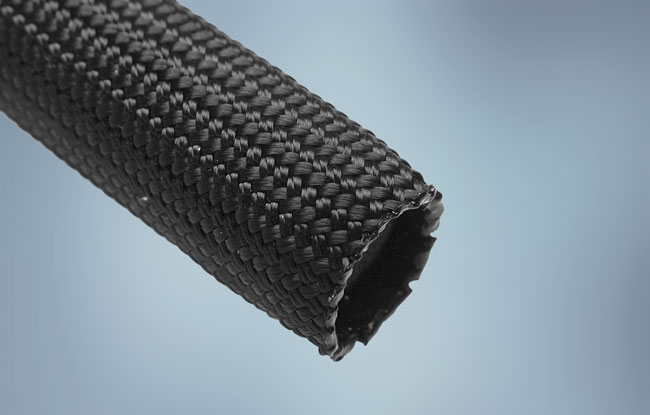

Stacks Image 8083
Open all Close all
  • Product Description
    FlexFit® 2114 is a slightly expandable sleeve specifically designed for the abrasion protection of automotive wire harnesses, tubings and hoses. Its high coverage ratio and its aesthetic appearance enable the use of FlexFit 2114 on wire harnesses which are visual in the passenger compartment.

    FlexFit 2114 is constructed of polyester multifilaments. Its construction ensures excellent properties for the mechanical protection of rubber hoses and for the resistance to the internal pressure of the hoses.
  • Typical Applications

    • Wire Harnesses
    • Hoses and Tubing

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) multifilament
  • Sizes / Availability

    Standard Sizes

    Size
    mm
    Recommended Application Range
    mm
    Min Ø
    Max Ø
    6
    4
    7
    12
    11
    13
    15
    14
    16
    18
    17
    19
    22
    20
    24


    Availability

    FlexFit 2114 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data – FlexFit® 2114

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass 150°C (+302°F) with no visible degradation
    nor loss of flexibility

    Shrinkage ≤ 10%
    Low Temperature Flexibility
    BH100-016A
    Pass -50°C (-58°F)
    Flammability
    FMVSS 302
    D45 1333
    Self-extinguishing
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to
    10 subsequent test cycles (1 cycle is immersion at indicated
    temperature for 3 minutes followed by a stay out of the liquid at
    +23°C (+73°F) for 27 minutes):

    • Engine oil, automatic transmission fluid, hydraulic fluid,
      brake fluid at +80°C (+176°F)

    • Cooling liquid at +100°C (+212°F)

    • Standard fuel, protection oil and windshield cleaner at
      +23°C (+73°F)

    • Diesel at +50°C (+122°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
