ROUNDIT® 2601

Operating temperature up to +150°C (+302°F)

Light to moderate abrasion

Low profile and easy to install cable bundling

Self-wrapping design allows for break-outs

Lightweight and flexible

FUNCTION:

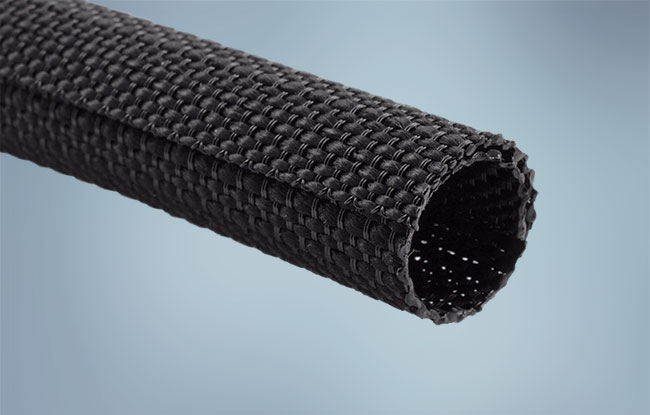

Stacks Image 6847
Open all Close all
  • Product Description
    ROUNDIT® 2601 is a self-wrapping sleeve designed to enable fast and easy wire harness bundling. Woven of both monofilament and multifilament polyester yarns the product is both flexible and lightweight. The polyester construction eliminates problems associated with trapped heat and humidity and also eliminates operator skin irritation during assembly. The combination of materials also enables the product to provide a level of abrasion protection for the wire bundle.

    ROUNDIT 2601 maintains a circular profile when flexed and its unique design easily allows for breakouts and installation over completed assemblies.
  • Typical Applications

    • Copper Power Cables
    • Copper Data Cables
    • Fiber Optic Cables
    • BESS Wire Harnesses
    • Server Rack Routing

  • Datasheet Downloads
  • Construction & Typical Product Characteristics

    Warp Yarn: Polyester (PET) multifilament
    Fill Yarns: Polyester (PET) monofilament

  • Sizes / Availability

    Product Specifications

    Nominal Diameter
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    5
    1
    5
    8
    5
    8
    10
    8
    10
    13
    10
    13
    16
    13
    16
    19
    16
    19
    25
    19
    25
    29
    25
    29
    32
    29
    32
    38
    32
    38

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user. A reduced overlap could be acceptable in certain applications allowing for a larger max diameter harness. Please consult your local sales representative for recommendations and guidance.

    Availability

    Standard sizes are listed here, Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black.

    Please consult your local sales representative for regional packaging details and standards.ROUNDIT Tool is available as an installation aid for sizes 5, 8 and 13 mm.

  • Installation Tools

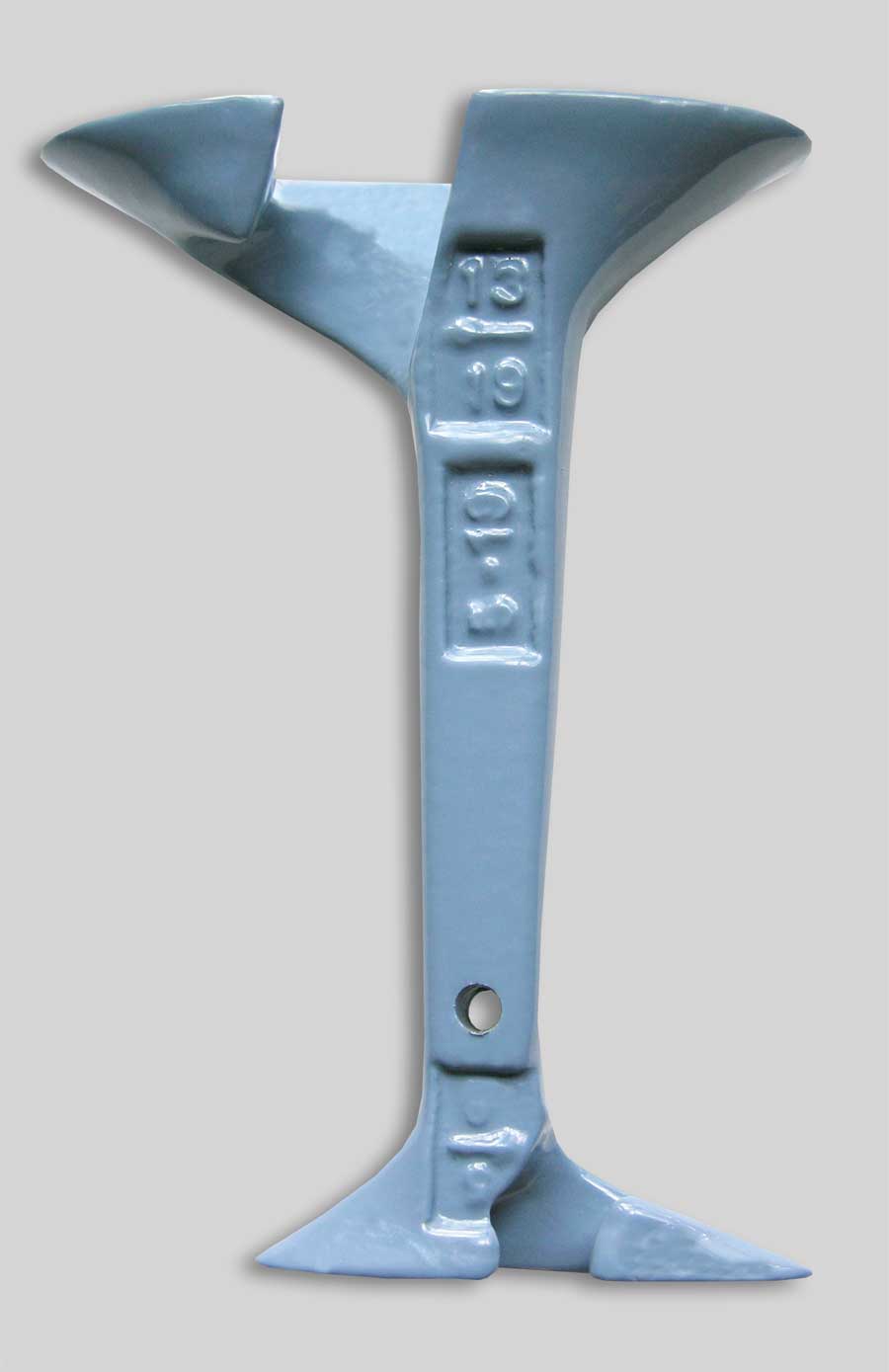

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2601

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°F rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
