THERMOJACKET® C

Operating temperature up to +1204ºC (+2200°F)

Protection of short-term heat exposure to +1426°C (+2600°F)

Extremely flexible

Attractive appearance

Expandable

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

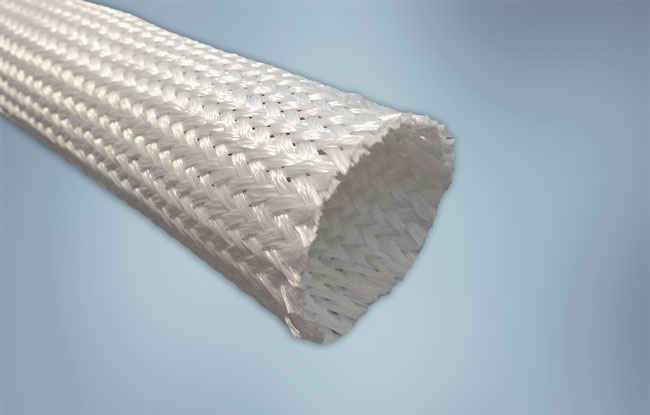

    ThermoJacket® C is an uncoated, unsaturated sleeving braided from Nextel* 312 ceramic fibers. ThermoJacket C retains strength and flexibility at continuous temperatures up to 1204°C (+2200°F) and offers significant protection against short term exposures at +1426°C (+2600°F).

    Thanks to its unique construction, ThermoJacket C provides excellent long term heat protection for hoses, wire harnesses and cables.

    The ThermoJacket product family is available in a variety of grades, offering industrial users the option of selecting a combination of properties best suited to their specific application.


    *Nextel is a registered trademark of 3M
  • Datasheet Downloads
  • Standard Sizes

    Product Specifications

    Commercial Part Number
    Size
    mm (in)
    Approximate Number of Meters
    (Footage) to Cover 30m (100ft)
    m (ft)
    Standard Packaging
    m (ft)
    ThermoJacket C 4-9
    6 (1/4")
    36 (119')
    30 (100')
    ThermoJacket C 6-9
    9 (3/8")
    39 (128')
    30 (100')
    ThermoJacket C 8-9
    13 (1/2")
    39 (128')
    30 (100')
    ThermoJacket C 10-9
    16 (5/8")
    40 (130')
    30 (100')
    ThermoJacket C 16-9
    25 (1")
    38 (125')
    30 (100')
    ThermoJacket C 20-9
    32 (1-1/4")
    37 (123')
    15 (50')
    ThermoJacket C 24-9
    38 (1-1/2")
    39 (129')
    15 (50')
    ThermoJacket C 28-9
    45 (1-3/4")
    38 (125')
    15 (50')
    ThermoJacket C 32-9
    50 (2")
    40 (133')
    15 (50')
    ThermoJacket C 40-9
    64 (2-1/2")
    41 (135')
    15 (50')

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ThermoJacket C 6
    9
    9 (natural)
    30m
