FLEXGUARD® 2150

Operating temperature up to +125°C (+257°F)

Excellent mechanical protection

Designed to fit tightly tube diameters without additional fixing devices

FUNCTIONS:

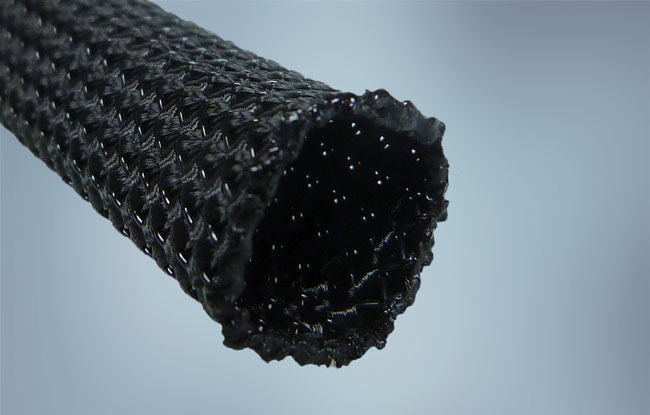

Stacks Image 6847
Open all Close all
  • Product Description
    FlexGuard® 2150 is a sleeve especially designed to provide an excellent abrasion protection to automotive tubes.

    FlexGuard 2150 is specifically designed of a mix of mono- and multi-filaments to provide an excellent mechanical protection. Its low profile construction fits perfectly the polyamide pipe architecture and curves and ensures a very good localization on the application.

    FlexGuard 2150 is mainly used to protect fuel and brake lines exposed to severe mechanical contacts.
  • Typical Applications

    • Fuel Lines
    • Brake Lines

  • Datasheet Downloads
  • Sizes / Availability

    Standard Sizes

    Nominal Size
    (mm)
    Recommended Application Range
    (mm)
    Min Ø
    Max Ø
    4
    4
    5
    5
    5
    6
    6
    6
    8
    8
    8
    10
    10
    10
    12
    12
    12
    14
    Availability

    FlexGuard 2150 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.
  • Product Testing

    Performance Data – FlexGuard® 2150

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +150°C (+125°C rating)
    Pass +125°C (+257°F) with no visible degradation nor loss of flexibility
    Shrinkage < 10%
    Low Temperature Flexibility
    BH100-016A
    Pass -40°C (-40°F)
    Abrasion Resistance
    D44 1959
    Cat D per S21 5101
    Flammability
    FMVSS 302
    D45 1333
    Pass
    Self-extinguishing, Type B
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:

    • Immersion for 15s at 23°C, followed by a drying period of:
      • 24h at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
      • 24h at 23°C: zinc chloride, brake fluid.

    • Immersion for 48h at 70°C, followed by a drying period of:
      • 24h at 23°C: Urea of clean up Ad blue.

    • Immersion for 24h:
      • At 40°C, followed by a drying period of 4h at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4h at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4h at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
