THERMOJACKET® S

Operating temperature from -50°C to +240°C (-58°F to +464°F)

EN 45545-2

No end fray

Suitable for long length applications

Attractive appearance

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

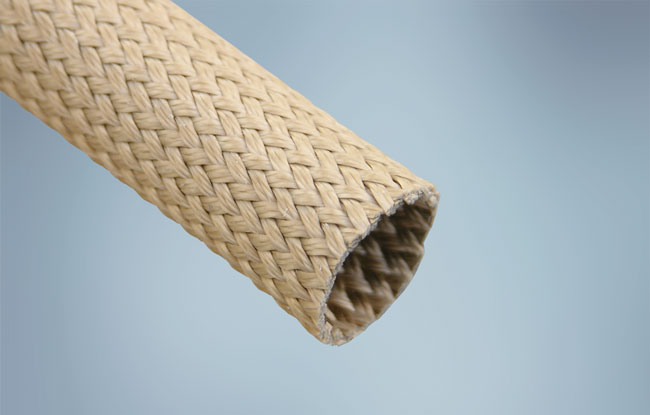

    ThermoJacket® S sleeving is constructed of braided fiberglass with a saturated coating which adds rigidity to the product and reduces the likelihood of end fray. The stiff coating also results in a sleeving that is easy to apply over long length applications and is resistant to mechanical abrasion. Thermojacket S can withstand exposure to long-term heat up to +540°C based on its fiberglass construction. If subsequent service or accidental temperatures exceed +240ºC, the saturant will gradually volatize without toxic or excessive fumes or smoke.

    ThermoJacket sleeving provides excellent long-term heat protection for hoses, wire harnesses and cables. ThermoJacket is available in a variety of grades, offering industrial users the option of selecting combination of properties best suited to their specific application.
  • Datasheet Downloads
  • Availability
    ThermoJacket S is available in sizes from 1/4” to 4” in diameter.
  • Standard Sizes

    Product Specifications

    Commercial Part Number
    Diameter Covered
    mm (in)
    Approximate Length of Product
    Needed to Cover 30m (100ft)
    m (ft)
    Standard Packaging
    m (ft)
    ThermoJacket S 4-9
    6 (1/4")
    31 (100')
    60 (200')
    ThermoJacket S 6-9
    10 (3/8")
    31 (100')
    60 (200')
    ThermoJacket S 6-9
    13 (1/2")
    31 (100')
    60 (200')
    ThermoJacket S 10-9
    16 (5/8")
    31 (100')
    60 (200')
    ThermoJacket S 10-9
    19 (3/4")
    35 (115')
    60 (200')
    ThermoJacket S 10-9
    22 (7/8")
    43 (140')
    60 (200')
    ThermoJacket S 16-9
    25 (1")
    31 (102')
    30 (100') - box
    ThermoJacket S 16-9
    32 (1-1/4")
    33 (108')
    30 (100') - box
    ThermoJacket S 22-9
    35 (1-3/8")
    33 (108')
    31 (100') - box
    ThermoJacket S 22-9
    38 (1-1/2")
    32 (106')
    31 (100') - box
    ThermoJacket S 22-9
    44 (1-3/4")
    34 (111')
    31 (100') - box
    ThermoJacket S 22-9
    51 (2")
    36 (117')
    31 (100') - box
    ThermoJacket S 22-9
    57 (2-1/4")
    39 (128')
    31 (100') - box
    ThermoJacket S 44-9
    64 (2-1/2")
    32 (104')
    31 (100') - box
    ThermoJacket S 44-9
    70 (2-3/4")
    33 (109')
    31 (100') - box
    ThermoJacket S 44-9
    76 (3")
    35 (116')
    31 (100') - box
    ThermoJacket S 44-9
    83 (3-1/4")
    36 (119')
    31 (100') - box
    ThermoJacket S 44-9
    89 (3-1/2")
    39 (128')
    31 (100') - box
    ThermoJacket S 44-9
    95 (3-3/4")
    42 (139')
    31 (100') - box
    ThermoJacket S 44-9
    102 (4")
    46 (151')
    31 (100') - box

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ThermoJacket S
    6
    9 (natural)
    60m
  • Product Testing

    Performance Data - ThermoJacket® S

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    High Temperature Exposure
    BH100-502 at +500°C (+932°F)
    Pass
    Low Temperature Flexibility
    BH100-016 A at -50°C (-58°F)
    Pass
    Fire / Smoke / Toxicity
    DIN 5510 §2 & 54837
    EN 45545-2
    BS 6853
    S4, SR2, ST2
    Interior R22 and R6: HL3, Exterior R23 and R9: HL3
    Category 1a
    Thermal Containment Efficiency
    SAE J2495

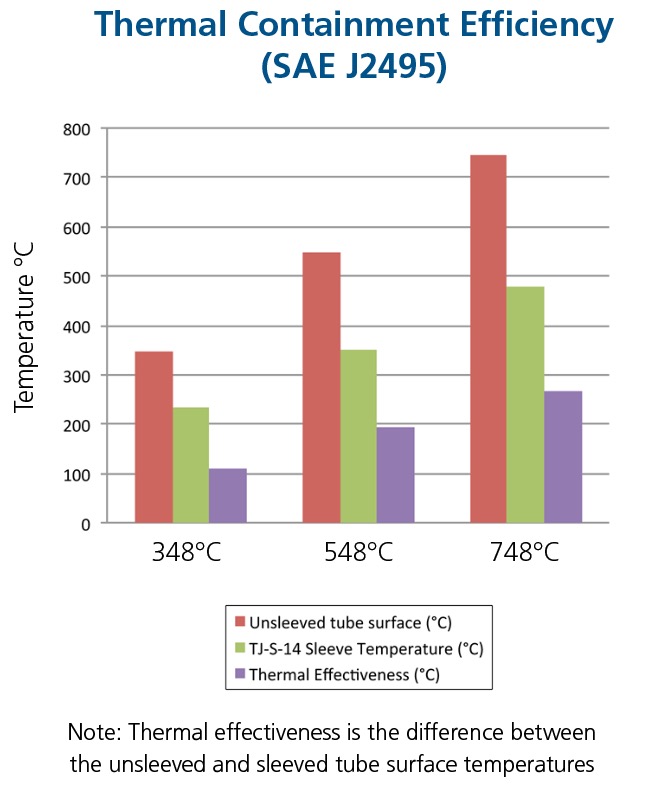

    See graph below
    Melting Point
    Melting at +1120°C (+2048°F)
    Softening at +730°C (+1346°F)
    Humidity Resistance
    BH100-501
    % Moisture pick-up after 48 hours
    at +23°C in 98% humidity
    Fluid Resistance
    BH100-501
    Over 100% tensile retention

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
