NYLOGARD® 2451

Operating temperature up to +125°C (+257°F)

Superior abrasion resistance

Excellent cut-through resistance

High coverage for maximum protection

Fluid resistant

Available in various sizes

Custom printing available

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

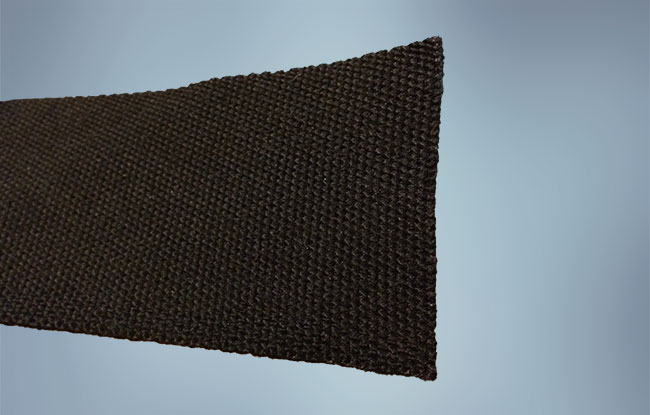

    NyloGard® 2451 is a highly durable, tightly woven tape constructed from high denier nylon yarns. NyloGard 2451 provides superior abrasion and cut-through protection for hoses, cables and wires for extreme applications and in rugged environments.

    NyloGard 2451’s dense construction provides maximum coverage. These properties extend the service life of the protected component and offer a cost savings associated with decreased component replacements.
    NyloGard® 2451SP version also available. This version takes all the value and benefits of NyloGard 2451SA and has additional layer of polymeric film. The addition of film layer provides increased dielectric strength as well as reduces ability for textile structure to absorb moisture. This additional functionality can be of high value when design in on and around high voltage components.
  • Datasheet Downloads
  • Product Testing

    Performance Data – NyloGard® 2451

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    BH 100-016A
    Pass -70°C (-94°F)
    Fluid Resistance
    BH 100-003B
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    2100 N avg
    2050 N avg
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
