FLEXFIT® 2101

Operating temperature up to +150°C (+302°F)

Low temperature flexibility to -70°C (-94°F)

Does not trap heat or moisture

Self-fitting over many shapes and sizes

Color coded products for identification needs

Low burning rate

FUNCTIONS:

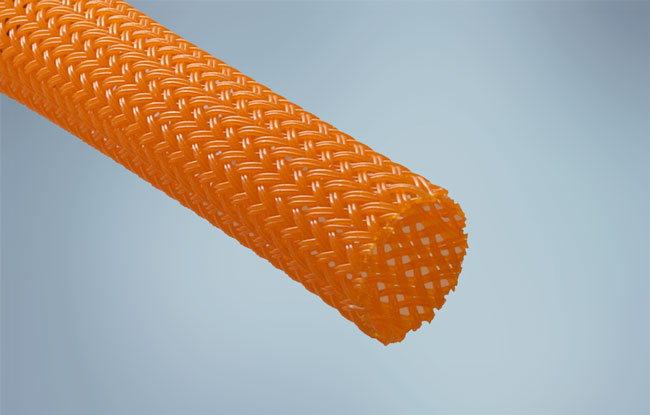

Stacks Image 8083
Stacks Image 6847
Open all Close all
  • Product Description
    FlexFit® 2101 is a tough, lightweight polyester braid designed to protect tube, hose and cables assemblies as well as wire harnesses from mechanical damage due to chafing, cutting and abrasion.

    The round profile makes it easy to install and its expandable design allows for fit to multiple application sizes and profiles. Additionally, the textile construction delivers high flexibility and prevents trapping of water, heat and humidity.

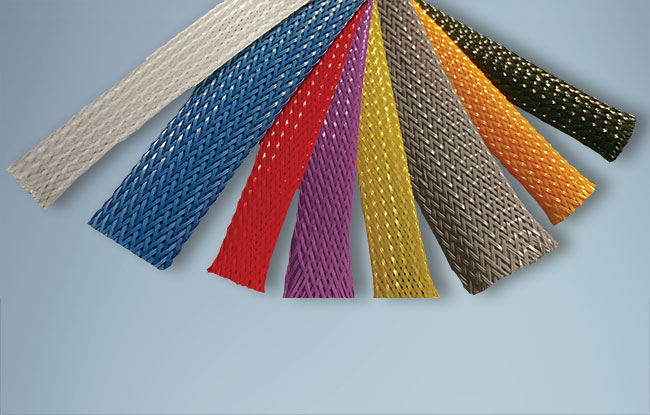

    FlexFit® 2101 is available in a variety of colors for identification of critical and key components. Orange is ideal for HEV & EV applications where high voltage cables must be easily identified.
    * Not all available colors are shown.
  • Typical Applications

    • Hybrid vehicles
    • Electrical Distribution Systems
    • Hose and Cable Assemblies

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Size
    mm
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    Mass
    g/m
    FlexFit 2101 8-C
    8
    4
    12
    8
    FlexFit 2101 13-C
    13
    6
    19
    12
    FlexFit 2101 19-C
    19
    13
    32
    17
    FlexFit 2101 25-C
    25
    15
    38
    23
    C = Color Code: Orange - 3 | Natural - 9 | Blue - 6 | Yellow - 4 | Red - 2 | Gray - 8 | Green - 5 | Violet/Purple - 7 | Black - 0


    Availability
    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard colors listed below table. Additional colors may be available.

    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

    Performance Data – FlexFit® 2101

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
