PROGARD® WRAP

Operating temperature up to +125°C (+260°F)

Enhanced abrasion resistance

Available in black only

Custom printing available

High coverage for maximum protection

Fluid resistant

FUNCTION:

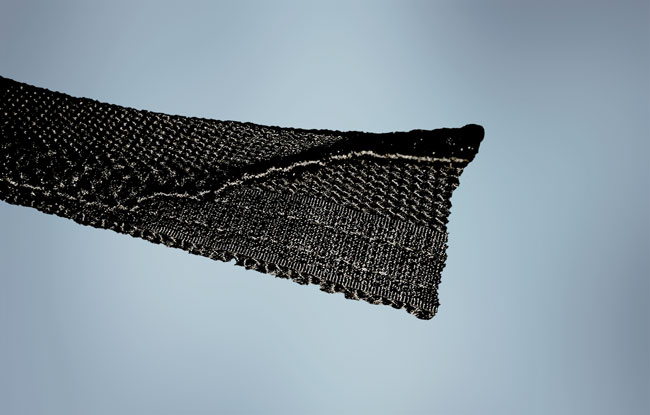

Stacks Image 6847
Open all Close all
  • Product Description
    ProGard® Wrap is a durable, flame retardant, tightly woven nylon sleeving. Constructed from high denier nylon yarns, ProGard Wrap provides superior abrasion and cut-through protection for hoses, cables, wires, and other applications in a rugged environment. The hook and loop closure system allows for quick and easy installation.

    ProGard Wrap’s dense construction provides maximum coverage of hoses and cables. These properties extend the service life of the protected component and offer a cost savings associated with decreased hose replacements.
  • Datasheet Downloads
  • Sizes / Availability
    ProGard® Wrap is available in a range of sizes. Standard color is black.
  • Product Testing

    Performance Data - ProGard® Wrap

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    Up to +125°C (+257°F)
    Low Temperature Flexibility
    BH100-016A
    -70°C (-94°F)
    Abrasion Resistance
    SAE ARP 1536A
    Excellent Resistance
    Fluid Resistance
    BH100-003A
    Typical % tensile strength retention
    (individual yarns)
    Fluid Resistance
     1:1 Ratio of Antifreeze / Water
    Transmission Fluid
    ASTM reference Fuel B
    Brake Fluid Sleeve
    Diesel Reference Fuel LRSD-4
    10W30 Motor Oil
    Power Steering Fluid
    3% Salt Water
    Windshield Washer Fluid
    BH100-003A
    Typical % tensile strength retention (ind. yarns) Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    5100 N min (typical)
    3800 N min (typical)

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
