FLEXFIT® 2115

Operating temperature up to +125°C (+257°F)

Excellent abrasion resistance

Highly flexible and easy to install

Expandable design for custom fit

Lightweight and breathable textile design

FUNCTIONS:

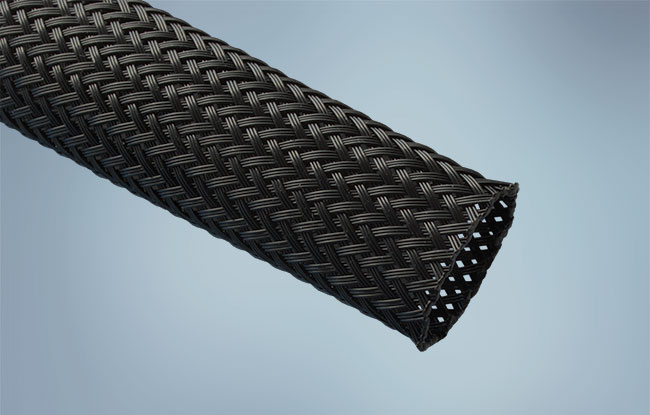

Stacks Image 8083
Open all Close all
  • Product Description
    FlexFit® 2115 is a lightweight and flexible braided sleeve constructed of PA (polyamide) monofilaments designed to protect tube, hose and cables assemblies as well as wire harnesses from mechanical damage due to chafing, cutting and abrasion.

    For severe applications, FlexFit 2115 utilizes polyamide monofilaments to provide superior mechanical protection, effectively extending the service life of hose and tubing applications as well as wire harnesses and other critical components.

    With the ability to expand many times larger than its diameter, FlexFit 2115 is easy to install, can adapt to a wide range of application sizes and profiles, as well as accommodate large pre-installed connectors. The breathable textile construction allows fluids drainage and heat dissipation as well as prevents condensation.
  • Typical Applications

    • Hose and Tubing Applications
    • Cable Assemblies
    • Wire Harnesses

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Nylon 66 (PA66) monofilament
  • Sizes / Availability

    Standard Sizes

    Commercial Part Number
    Nominal Diameter
    (mm)
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    FlexFit 2115 4-C
    4
    3
    7
    FlexFit 2115 6-C
    6
    5
    9
    FlexFit 2115 8-C
    8
    6
    12
    FlexFit 2115 FL 8/10-C*
    8
    8
    10
    FlexFit 2115 10-C
    10
    7
    15
    FlexFit 2115 12-C
    12
    10
    18
    FlexFit 2115 15-C
    15
    12
    23
    FlexFit 2115 20-C
    20
    16
    28
    FlexFit 2115 25-C
    25
    21
    35
    FlexFit 2115 30-C
    30
    26
    45
    FlexFit 2115 40-C
    40
    36
    60
    FlexFit 2115 50-C
    50
    45
    75
    C = Color Code: Black - 0 | Gray - 8 | Black with gray tracer - 0/8 | Gray with black tracer - 8/0
    Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Max and Min values above are for guidance only. There may be multiple variations of this braid designed to facilitate installation and optimize fit. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.

    * FL version is especially designed for fuel line protection for application diameters of 8, 9, and 10 mm.
  • Product Testing

    Performance Data – FlexFit® 2115

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +125°C (+257°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
