NYLOGARD® 2451SA NYLOGARD® 2451SP

Operating temperature up to +80°C (+176°F)

Superior abrasion resistance

Excellent cut-through resistance

Available in standard or customized die-cut design

Multiple adhesive systems available

Various backer paper materials and configurations available

Version available with additional polymeric film layer for increased dielectric properties

FUNCTIONS:

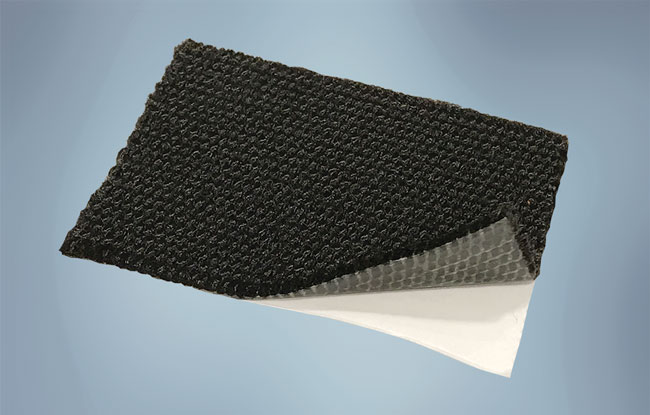

Stacks Image 8083
Stacks Image 8129
Open all Close all
  • Product Description
    NyloGard® 2451SA is a highly durable, tightly woven, adhesive-backed patch constructed from high denier nylon yarns. NyloGard 2451SA provides superior abrasion and cut-through protection for hoses, plastic reservoirs and wire troughs for extreme abrasion applications including cut-through conditions. The unique, multipolymer adhesive exhibits high adhesion to low surface energy plastics such as HDPE, polypropylene and gas filled polypropylene. Parts are available as geometry-specific die-cut patterns for designed-in protection, and in standardized rectangular parts for generic applications or spot-fixes.

    NyloGard 2451SA’s dense construction provides maximum coverage. These properties extend the service life of the protected component and offer a cost savings associated with decreased component replacements. The optimized adhesive system allows the user to place the protective covering precisely where it is needed and prevents the need to protect the component in its entirety.
    NyloGard® 2451SP version also available. This version takes all the value and benefits of NyloGard 2451SA and has additional layer of polymeric film. The addition of film layer provides increased dielectric strength as well as reduces ability for textile structure to absorb moisture. This additional functionality can be of high value when design in on and around high voltage components.
  • Typical Applications

    • Plastic Wire Troughs
    • Fluid Reservoirs
    • Tube, hose and cable assemblies
    • Low Surface Energy Plastics
    • Areas of complex geometry or difficult fixation
    • EV battery pack busbars, brackets, covers

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Warp Yarn: Nylon 6 (PA6) multifilament

    Fill Yarn: Nylon 6 (PA6) multifilament

    Adhesive System: LSE acrylic adhesive

    Optional Polymeric Film: Polyester
  • Product Testing

    Performance Data – NyloGard® 2451SA

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    Adhesion to Steel Plate (ref. ISO 188)
    Pass +80°C (+176°F)
    Adherance at Low Temperature
    ISO 8510-2
    Pass -40°C (-40°F)
    Fluid Resistance
    SAE J2192
    Pass
    Dynamic Cut-Through Resistance
    ASTM D3032
    Parallel to fill direction
    Parallel to warp direction

    2050 N avg
    2100 N avg
    Peel Strength
    ISO 8510-2
    > 525 N/m
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
