ROUNDIT® 2000FR GRIP

Operating temperature from -55ºC to +85ºC (-67ºF to +185ºF)

Self-wrapping design

Self-locating above textile hook surface

Flame resistant

EN 45545-2

Zero halogen

Abrasion resistant

Easy to apply and remove

FUNCTION:

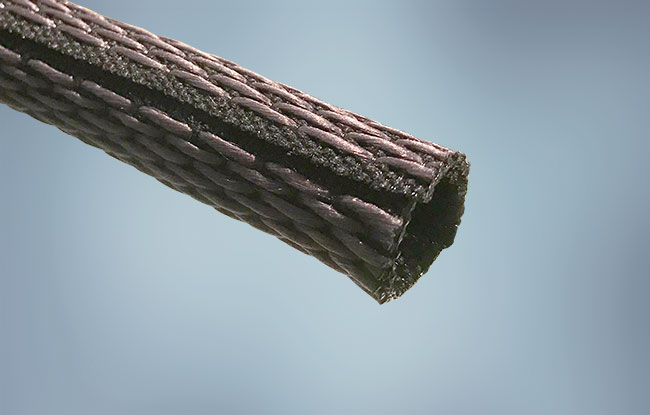

Stacks Image 6847
Open all Close all
  • Product Description

    ROUNDIT® 2000 FR GRIP is a wrap-around sleeving manufactured from flame-retardant polyester monofilaments and multifilaments, designed for mechanical protection and maintenance of wire and cable bundles. Its construction with 100% covering ratio provides good abrasion resistance.

    The self-wrapping feature of ROUNDIT 2000 FR GRIP allows for quick and easy installation and removal of the product for assembly and maintenance. ROUNDIT 2000 FR GRIP may be applied and removed without any manipulation of connectors or fittings and offers an innovative solution in areas where breakouts are necessary.

    The unique textile assembly of ROUNDIT 2000 FR GRIP allows self-location of the sleeve when applied on a textile hook surface thus reducing space generated by traditional wire harness fixation systems.

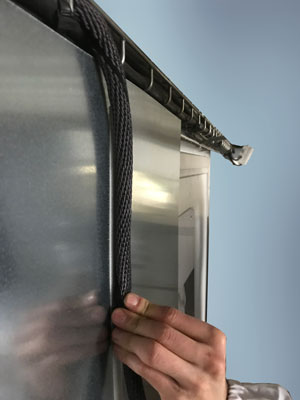

    ROUNDIT® 2000FR GRIP attached to its hook counterpart helps to keep wire bundles close to the structure thus saving space and weight generated by traditional attachment systems.

  • Installation Features

    • Ideal for bundling without disconnecting components
    • Accommodate break-outs
    • Multifilament construction soft to the cables

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Wire Harness Size
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    ROUNDIT 2000 FR GRIP 5-0
    5 (3/16")

    1 (1/32")

    5 (3/16")

    15 (0.010079)

    500 (1640')
    ROUNDIT 2000 FR GRIP 8-0

    8 (5/16”)

    5 (3/16”)

    8 (5/16”)

    20 (0.013430)

    500 (1640')
    ROUNDIT 2000 FR GRIP 13-0
    13 (1/2”)

    8 (5/16”)

    13 (1/2”)

    28 (0.018810)

    200 (656')
    ROUNDIT 2000 FR GRIP 19-0
    19 (3/4”)

    13 (1/2”)

    19 (3/4”)

    41 (0.027550)

    75 (246')
    ROUNDIT 2000 FR GRIP 25-0

    25 (1”)

    19 (3/4”)

    25 (1”)

    61 (0.040990)

    50 (164')
    ROUNDIT 2000 FR GRIP 32-0
    32 (1-1/4”)

    25 (1")

    32 (1-1/4”)

    71 (0.047709)

    50 (164')
    ROUNDIT 2000 FR GRIP 38-0
    38 (1-1/2")

    32 (1-1/4”)

    38 (1-1/2")

    81 (0.054429)

    50 (164')

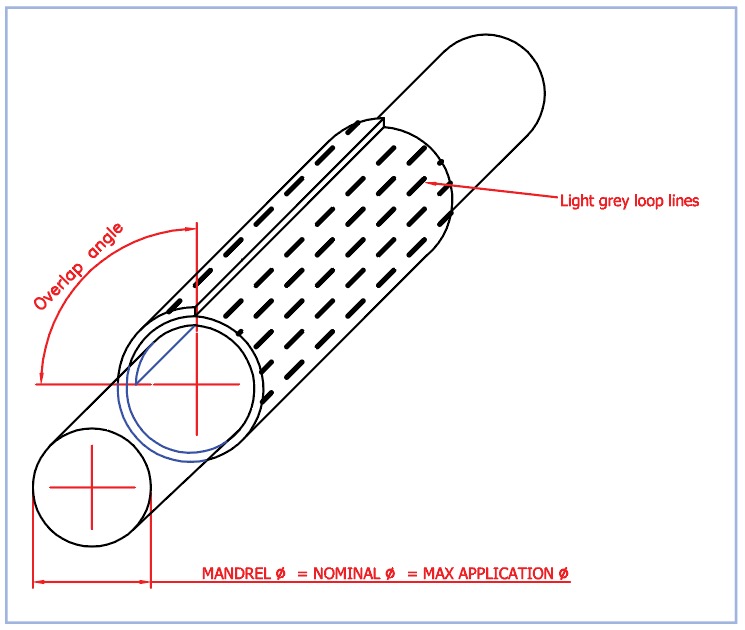

    Nominal size is determined by wrapping the product around a mandrel of a given size to obtain 90 degrees of overlap (average value).

    Light grey loop lines for affixing to compatible “hook” surfaces.

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT 2000 FR GRIP
    5
    0 (black)
    500m
  • Installation Tools

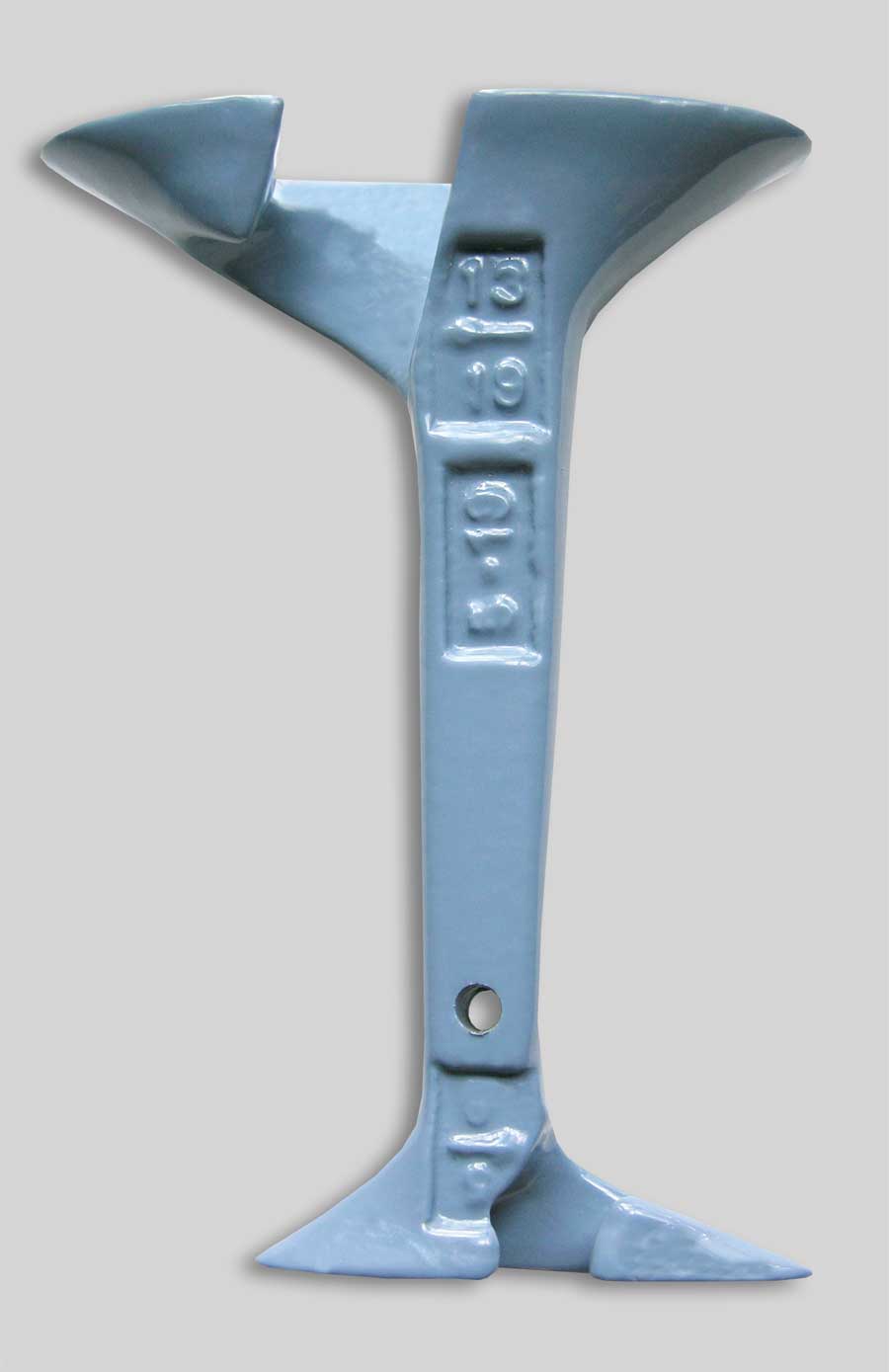

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® 2000 FR GRIP

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature Range
    -55ºC (-67°F) to +85ºC (185°F)
    Filament Melt Temperature
    +250°C (+482°F)
    Fire / Smoke / Toxicity
    EN 45545-2
    R22 HL3 R23 HL3
    Fluid Resistance
    – Hydraulic fluids: NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C (+158°F)
    No visible degradation or alteration
    after being exposed.

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
