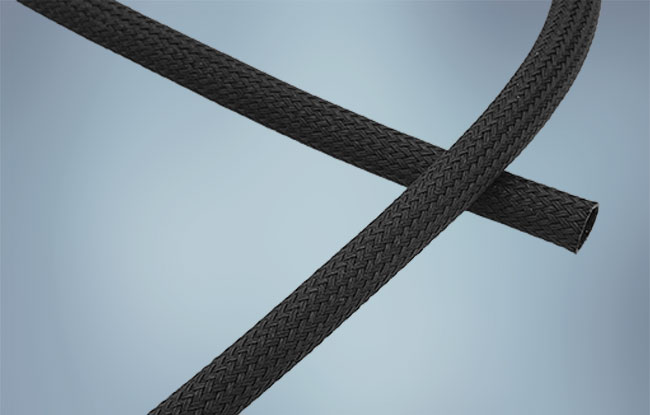

FLEXFIT® 2020

Operating temperature up to +150°C (+302°F)

Clean aesthetic

Expandable tubular sleeve

Good abrasion resistance

Excellent flexibility

Self-extinguishing

Fluid resistant

FUNCTIONS:

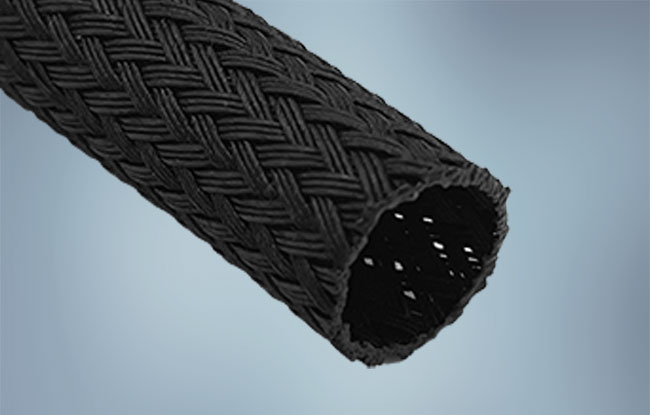

Stacks Image 8083
Stacks Image 6847
Open all Close all
  • Product Description
    FlexFit® 2020 is an expandable sleeving specifically designed for full coverage of automotive wire harnesses, cables, tubings and hoses. Its specific structure uniquely combines materials to provide a high coverage and clean aesthetic allowing sleeve to disappear in sight all while providing critical functional protection.

    FlexFit 2020 is constructed of a hybrid structure of specially prepared polyester monofilaments covered with polyester multfilaments. This unique construction ensures excellent appearance, protection against mechanical abrasion, resistance to common automotive fluids and self-extinguishing properties.

    A customized specialized cutting method provides parts that have round opening for ease of installation.
  • Typical Applications

    • Wire harness
    • Hoses and tubing

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) monofilament and multifilament
  • Sizes / Availability

    Standard Sizes

    Nominal Diameter
    (mm)
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    12
    10
    12
    Application based variables will influence the sleeve size required. Routing geometry and application type may present installation and fit challenges that should be considered. Max and Min values above are for guidance only. There may be multiple variations of this braid designed to facilitate installation and optimize fit. Proper sleeve sizing should be confirmed by the end user. Please consult your local sales representative for recommendations and support.

    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.
    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.
    Standard color is black. Additional colors may be available.
    Please consult your local sales representative for regional packaging details and standards.
  • Product Testing

    Performance Data – FlexFit® 2020

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +150°C (+125°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
