ROUNDIT® 2602

Operating temperature up to +150°C (+302°F)

Self-closing tubular design

Excellent abrasion resistance

Noise suppression

Very flexible

Extremely lightweight

Aesthetic solution

FUNCTION:

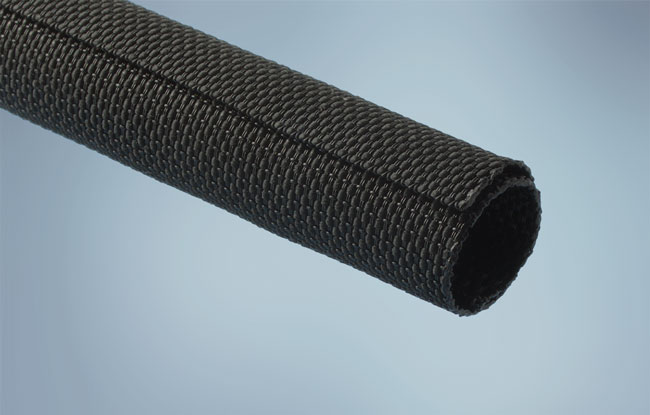

Stacks Image 6847
Open all Close all
  • Product Description
    ROUNDIT® 2602 is a self-closing oversleeve designed to provide mechanical protection and to suppress acoustic noise. Woven of monofilament and multifilament polyester yarns the product offers superior abrasion protection, high level of component protection and is both flexible and lightweight. Its unique construction eliminates problems associated with trapped heat and humidity.

    ROUNDIT 2602 fits tightly to wire harnesses, saving space, but without reducing the flexibility of the wire bundles it protects. It also maintains a circular profile when flexed. Its self-wrapping design allows for quick and easy bundling of wire and cable assemblies. The unique design easily allows for breakouts and can be installed over completed assemblies.
  • Typical Applications

    • Fiber Optic Cables
    • Server Rack Routing

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Nominal Diameter (mm)
    Recommended Application Range (mm)
    Min Ø
    Max Ø
    5

    1

    5
    8

    5

    8
    10

    8

    10
    13

    10

    13
    16

    13

    16
    19

    16

    19
    25

    19

    25
    29

    25

    29
    32

    29

    32

    Max diameter is defined as a nominal 90° sleeve overwrap. A variety of application-based variables will dictate the appropriate sleeve size for use on each harness. Proper sleeve sizing is at the discretion of the end user.

    Availability

    Standard sizes are listed here. Additional sizes could be available upon request.

    Available in spools and custom cut lengths. Recommended cut lengths are in 5mm increments. Please see regional drawings for cut length tolerances.

    Standard color is black. Additional colors may be available upon request.

    Please consult your local sales representative for regional packaging details and standards.

  • Installation Tools

    There are no installation guides available at this time. Please contact your sales representative or distribution team for further support.

  • Product Testing

    Performance Data - ROUNDIT® 2602

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hrs at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    SAE J2192
    Pass -70°C (-94°F)
    Flammability
    FMVSS 302
    SAE J369
    Pass
    Self-extinguishing
    Fluid Resistance
    SAE J2192
    Pass
    Noise Suppression
    SAE J2192
    Rubbing : > 18dB
    Rattling : > 19dB
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
