EXPANDO® HTNS-L/HO

Operating temperature from -60ºC to +240ºC (-76ºF to +464ºF)

ASD EN 6049-003

1:2 expansion ratio

Thin wall

Lightweight

Self-extinguishing

Excellent abrasion protection

Resistant to gamma and x-rays

Water repellent

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

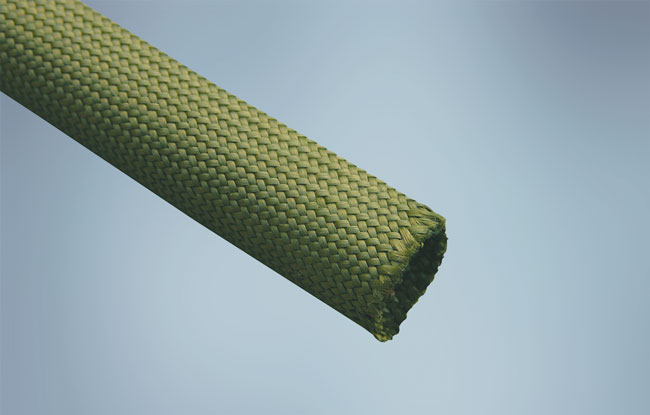

    Expando® HTNS-L/HO is a thin wall braided sleeve manufactured from the meta-aramid Nomex®. Its highly expandable structure allows easy installation over long lengths even after the fitting of end connectors with a limited range of product sizes.

    Expando HTNS-L/HO’s flexible, expandable and non-flammable properties ensureexcellent performance in the most diverse and aggressive environments. The product is designed for the protection of wire and cable bundles against flame, high temperatures, and mechanical abrasion.

    The properties of Expando HTNS-L/HO ensure excellent resistance to gamma and x-rays.

    Expando HTNS-L/HO has a water repellent treatment (HO) to reduce humidity absorption and to improve impermeability to fluids.

    Expando HTNS-L/HO has various applications in the military, marine and aeronautical industries.

    Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-braid construction of Expando products enables each size to expand to fit several application shapes and diameters. This open-textile construction also makes them highly flexible and resistant to trapping water, heat and humidity.



    Nomex is a registered trademark of E.I. DuPont de Nemours.
  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Max Weight
    g/m (lbs/ft)
    Standard Packaging
    m (ft)
    Expando HTNS-L/HO 2-X
    1 (1/32")
    2 (1/16")
    3.0 (0.002)
    100 (328')
    Expando HTNS-L/HO 4-X
    2 (1/16")
    4 (3/16")
    4.0 (0.003)
    100 (328')
    Expando HTNS-L/HO 6-X
    4 (3/16")
    8 (5/16")
    8.5 (0.006)
    100 (328')
    Expando HTNS-L/HO 8-X
    6 (1/4")
    12 (7/16")
    11.5 (0.008)
    50 (164')
    Expando HTNS-L/HO 10-X
    8 (5/16")
    16 (5/8")
    14.0 (0.009)
    50 (164')
    Expando HTNS-L/HO 15-X
    10 (3/8")
    20 (3/4")
    17.5 (0.012)
    50 (164')
    Expando HTNS-L/HO 20-X
    12 (7/16")
    24 (15/16")
    22.0 (0.015)
    50 (164')
    Expando HTNS-L/HO 25-X
    15 (9/16")
    30 (1-3/16")
    32.5 (0.022)
    50 (164')
    Expando HTNS-L/HO 30-X
    20 (3/4")
    40 (1-1/2")
    39.5 (0.027)
    50 (164')
    X = Color Code: 0 = black | 9 = natural

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    Expando HTNS-L/HO
    4
    5 (green)
    100m (328 ft)
    X = Color Code: 5 = green | 9 = ivory | 2 = Red | 0 = Black | 3 = Orange
  • Product Testing

    Performance Data - Expando® HTNS-L/HO

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    -60˚C to +240°C (-76°F to +464°F) (continuous)
    Up to +310°C (+590°F) (short term)
    Carbonization
    Above +370°C (+698°F)
    Does not melt
    Abrasion Resistance
    EN 6059 Part 403
    Pass
    Flame Resistance
    FAR 25 AMDT.25-72 § 853(b)
    Pass
    Fluid Resistance
    – Jet Fuel JP-4 (MIL-T-5624)
    – Hydraulic Fluid (MIL-H-5606)
    – Lube Oil (MIL-I-7808)
    – De-Ice Fluid (MIL-A-8243)
    – Reference Oil #2 (ASTM D-471)
    – Salt Water (O-S-1926)
    EN 6059 Part 303 (24h with various temperatures)

    Pass
    Pass
    Pass
    Pass
    Pass
    Pass
    Humidity Resistance
    1000 h at +150°C (+302°F) in air
    saturated with water vapor
    Retains 70% of its original tensile strength
    Water Repellent
    EN 6059 Part 305
    Pass

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
