FLEXGUARD® 2129

Operating temperature up to +150°C (+302°F)

Circular profile

Excellent abrasion resistance

Very flexible

Quick installation

Does not trap heat or humidity

FUNCTIONS:

Stacks Image 8083
Open all Close all
  • Product Description

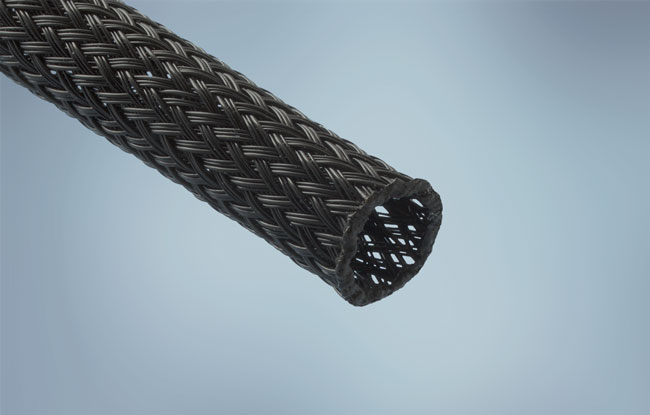

    FlexGuard® 2129 is a lightweight, expandable sleeve designed to provide mechanical protection for electrical distribution systems, hoses and cable assemblies. A dual monofilament construction that blends larger nylon monofilament guard strands with polyester support strands, provides an excellent balance of key features including abrasion resistance, flexibility, expandability and self-recovery.

    These features optimize the handling properties of the sleeve and assure longer service life for the protected component. An open weave construction permits drainage and prevents condensation. To facilitate installation, FlexGuard 2129 is engineered to maintain a very round profile. This feature makes it extremely easy to install the product over a wide range of assemblies. Because it also expands up to several times its own diameter, one size fits many applications.
  • Typical Applications

    • Electrical Distribution Systems
    • Hoses and Tubes
    • Sensor Assemblies

  • Datasheet Downloads

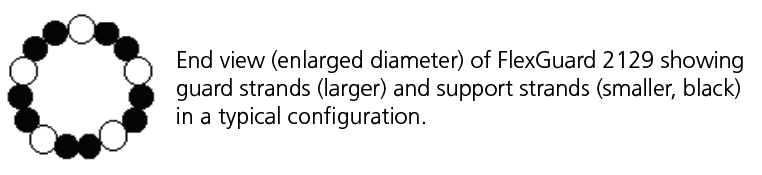

  • Construction and Typical Product Characteristics
    Resilient Support Yarn: Polyester (PET) monofilament

    Abrasion Guard Yarn: Nylon 66 (PA66) monofilament
  • Sizes / Availability

    Availability

    FlexGuard 2129 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data – FlexGuard® 2129

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
