FLEXFIT® 2118

Operating temperature up to +150°C (+302°F)

Slightly expandable tubular sleeve

Excellent abrasion resistance

Excellent flexibility

Attractive appearance

FUNCTIONS:

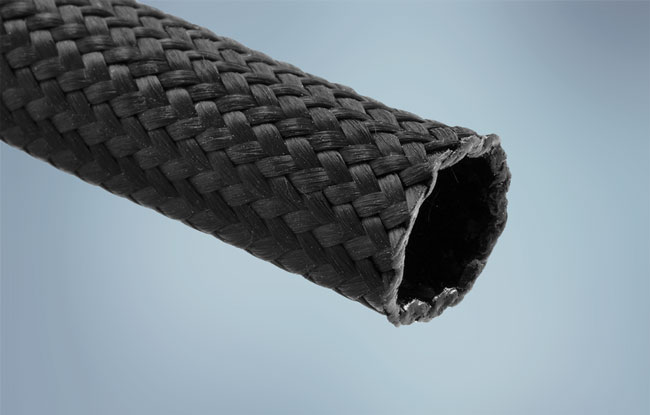

Stacks Image 8083
Open all Close all
  • Product Description
    FlexFit® 2118 is a flexible, slightly expandable sleeve specifically designed for abrasion/ mechanical protection of wire harnesses, tubing and hoses. Braided with polyester multifilaments, it is lightweight, and rugged yet has a very attractive appearance. A high coverage ratio contributes to the product’s aesthetic appeal and makes it suitable for visible applications.
  • Typical Applications

    • Wire Harnesses
    • Hoses and Tubings

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    Polyester (PET) multifilament
  • Sizes / Availability

    Availability

    FlexFit 2118 is available in a range of sizes and cut to your specification. Standard color is black. Please contact your sales representative for availability.

  • Product Testing

    Performance Data – FlexFit® 2118

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -70°C (-94°F)
    Flammability
    SAE J369
    Self-extinguishing
    Fluid Resistance
    BH100-003B
    Pass
    Melt Temperature
    ASTM D3418
    +245°C to +265°C (+473°F to +509°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
