FLEXGUARD® 2131

Operating temperature -50°C to +150°C (-58°F to +302°F)

Expandable tubular sleeve

Excellent abrasion resistance and cut-through

Extremely flexible

Self extinguishing

Fluid resistant

FUNCTIONS:

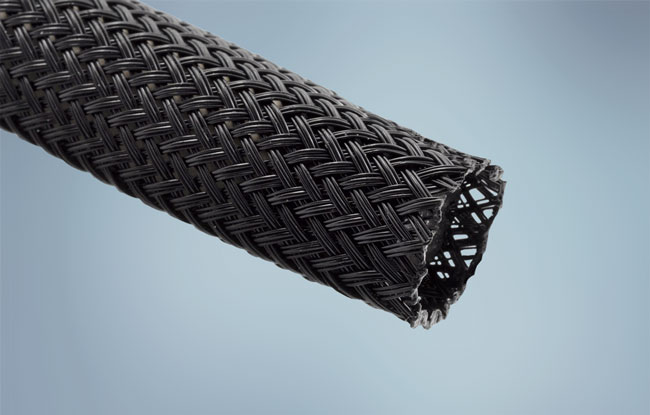

Stacks Image 8083
Open all Close all
  • Product Description
    FlexGuard® 2131 is a flexible, expandable sleeve that is both lightweight and rugged. Densely constructed of polyester, FlexGuard 2131 is specifically designed for the abrasion protection of automotive hoses, tubings and cables located in the engine compartment.

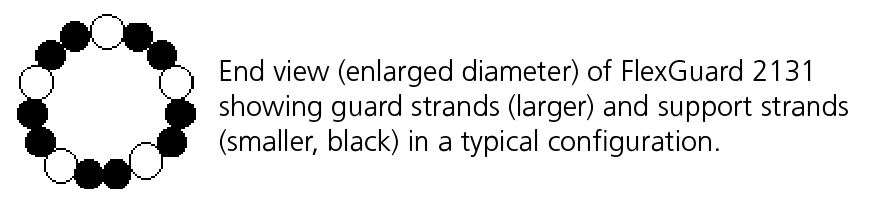

    Our unique manufacturing process combines different diameters of monofilament into the braiding process, achieving maximum installed coverage, thus providing superior abrasion resistance.

    Additionally, FlexGuard 2131 is particularly suited for use on hoses as the product conforms to tight bends without folding or bunching, providing an aesthetically pleasing finish.
  • Typical Applications

    • Hoses
    • Tubing and Cables

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
  • Sizes / Availability

    Standard Sizes

    Size
    mm
    Recommended Application
    Range (mm)
    Min Ø
    Max Ø
    8
    6
    9
    10
    8
    12
    13
    11
    14
    15
    14
    16
    17
    15
    19
    18
    16
    20
    20
    18
    22
    24
    21
    25
    28
    26
    30
    33
    30
    35
    43
    40
    46
    50
    48
    58
    Note: Longitudinal shrinkage should be taken into account when utilizing expansion properties of the sleeve.
  • Product Testing

    Performance Data – FlexGuard® 2131

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Temperature Rating
    240 hours at +175°C (+150°C rating)
    Pass +150°C (+302°F)
    Low Temperature Flexibility
    BH100-016A
    Pass -50°C (-58°F)
    Flammability
    FMVSS 302
    D45 1333
    Self-extinguishing, Type B
    Cut-through Resistance
    BS G 212
    Excellent
    Fluid Resistance
    D47 1924
    No visible degradation or alteration after being exposed to the following test cycles:
    • Immersion for 15s at 23°C, followed by a drying period of 24hrs at 150°C: motor oil, automatic transmission fluid, manual transmission oil.
    • Immersion for 48hrs at 70°C, followed by a drying period of 24hrs at 23°C: Urea of clean up Ad blue.
    • Immersion for 24hrs:
      • At 40°C, followed by a drying period of 4hrs at 23°C: for gazole, unloaded petrol 98, Std fuel C + 15% methanol, E85 bio ethanol.
      • At 70°C, followed by a drying period of 4hrs at 23°C, for windscreen washer.
      • At 118°C, by a drying period of 4hrs at 23°C, for engine coolant.
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
