ROUNDIT® EMI DW

Operating temperature -50ºC to +200ºC (-58ºF to +392ºF)

Self-wrapping design

EN45545-2

Fast and easy installation for local EMI protection

Stable construction

Integrated drain wires for easy grounding without accessories

Ideal for reworking components without disconnecting them

Zero halogen

UL 94 V0 Raw Material

Cu/Ni Metal (ASTM B-355 nickel plated copper)

Good level of EMI Shielding
     – R0 max = 6 mΩ
     – Lt = 1.2 nH/m

FUNCTION:

Stacks Image 6847
Open all Close all
  • Product Description

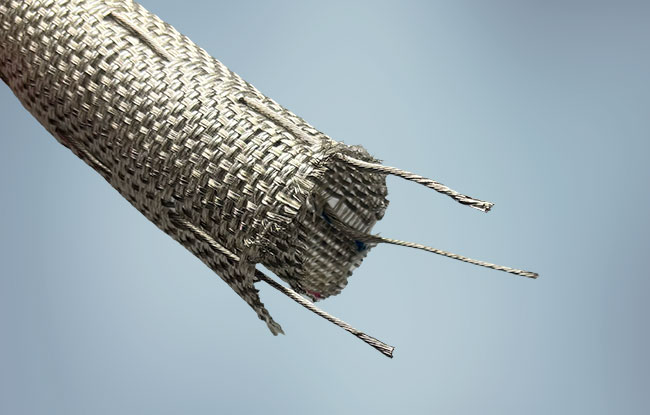

    ROUNDIT® EMI DW is a wrap-around sleeving designed for high performance EMI shielding of wire and cable bundles. ROUNDIT EMI DW is manufactured from UL 94 V0 rated PPS monofilaments and nickel plated copper wires according to ASTM B-355.

    The self-wrapping feature of ROUNDIT EMI DW allows for quick and easy installation and removal of the product for assembly and maintenance.

    The textile pattern incorporates drain wires which once pulled out of the construction by a simple manual operation can be crimped to a nearby grounding point.

    The design offers innovative solutions to the protection of breakout areas and also provides ease of removal when inspection or maintenance of cables is necessary.

    The stable construction guarantees the same level of EMI shielding regardless of the diameter on which it is installed within the recommended application range.

    As an additional benefit, ROUNDIT EMI DW enables users to stock a limited range of sizes to cover a wide range of cable and wire diameters.

    ROUNDIT EMI DW has many applications in the railway, marine and electronics industries.

  • Datasheet Downloads
  • Sizes / Availability

    Product Specifications

    Commercial Part Number
    Nominal
    Size
    mm (in)
    Recommended Application Range mm (in)
    Min Ø
    Max Ø
    Sleeve
    Cross Section
    mm    2
    Drain Wire
    Cross Section
    mm    2
    Max Mass
    g/m (lbs/ft)
    Standard
    Packaging
    m (ft)
    ROUNDIT EMI DW 13-8
    13 (1/2")
    8 (1/8")
    13 (1/2")
    5.27
    2 x 1.23
    102 (0.0685)
    100 (328')
    ROUNDIT EMI DW 19-8
    19 (3/4")
    13 (1/2")
    19 (3/4")
    4.5
    2 x 1.23
    120 (0.0806)
    50 (164')
    ROUNDIT EMI DW 25-8
    25 (1")
    19 (3/4")
    25 (1")
    5.1
    3 x 1.23
    140 (0.0940)
    35 (115')
    ROUNDIT EMI DW 32-8
    32 (1-1/4")
    25 (1")
    32 (1-1/4")
    7.7
    3 x 1.23
    160 (0.1075)
    35 (115')
    ROUNDIT EMI DW 45-8
    45 (1-3/4")
    32 (1-1/4")
    45 (1-3/4")
    10.4
    3 x 1.23
    170 (0.1142)
    35 (115')

    Part Numbering System

    Example



    Product Name
    Size
    Color
    Quantity
    ROUNDIT EMI DW
    45
    8 (light gray)
    35m
  • Installation Tools

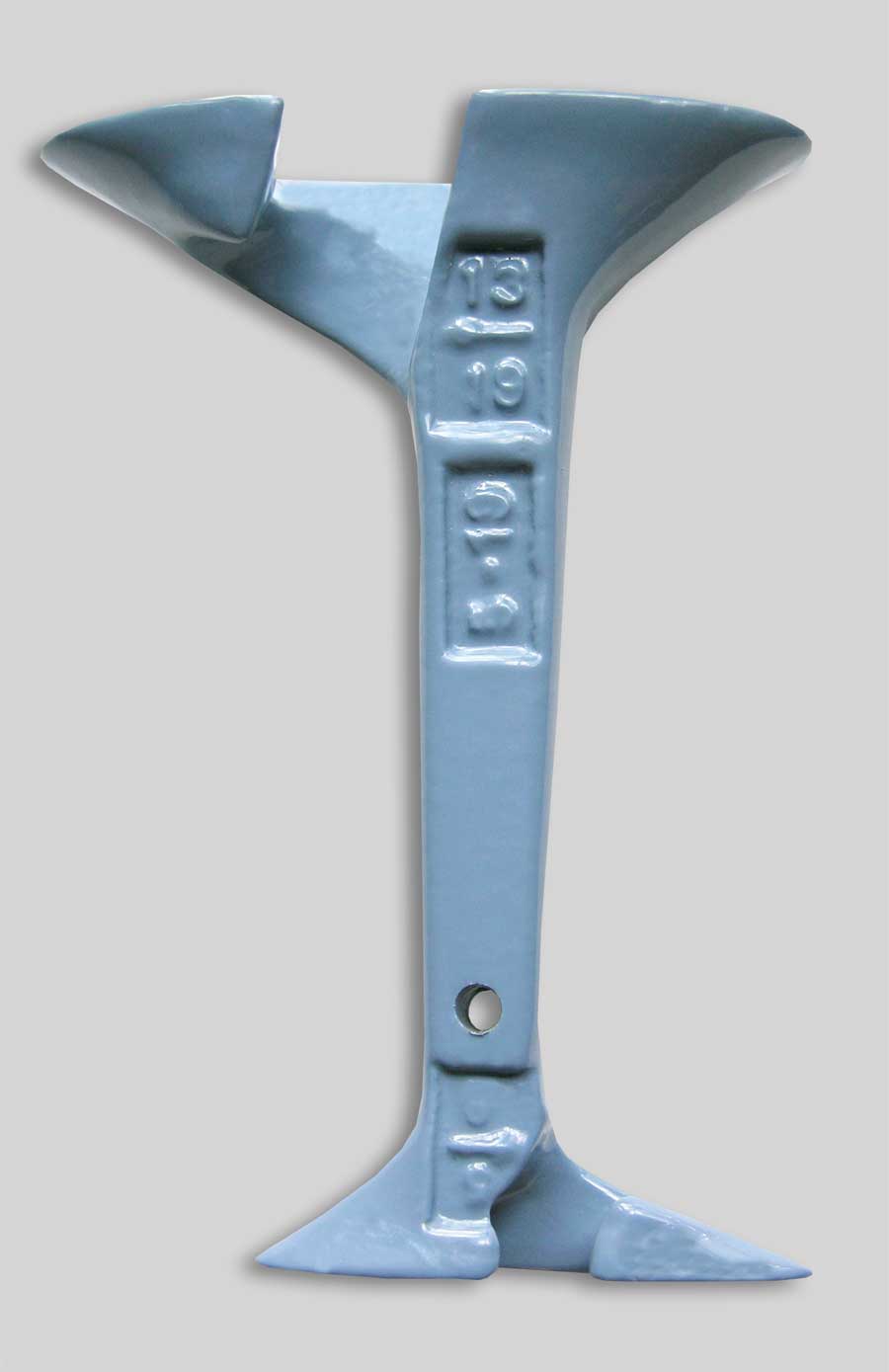

    As an added benefit, the patented ROUNDIT® Tool will help improve installation time and is designed to install ROUNDIT® products on cable and wire configurations.

  • Product Testing

    Performance Data - ROUNDIT® EMI DW

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    PHYSICAL
    Operating Temperature Range
    -50ºC to +200ºC (-58°F to +392°F)
    Heat aging
    EN6059-302 (168 hours)
    +200°C (+392°F)
    Fire / smoke / toxicity
    UL 94
    EN 45545-2
    Raw material classified V0
    R22 HL3 R23 HL3
    Nickel plated copper
    ASTM B-355
    Nickel plated copper
    CHEMICAL
    Fluid Resistance
       – Hydraulic Fluids NATO.0.156
    EN 6059-303
    Immersion for 24hrs at +70°C
    D47 1924
    No visible degradation after being exposed
    Salt spray resistance
    EN 2591-307 – 96 hours
    Pass
    EMI PERFORMANCE
    Resistance Measurement

    EN 3475-301
    R0 max all sizes = 6 mΩ

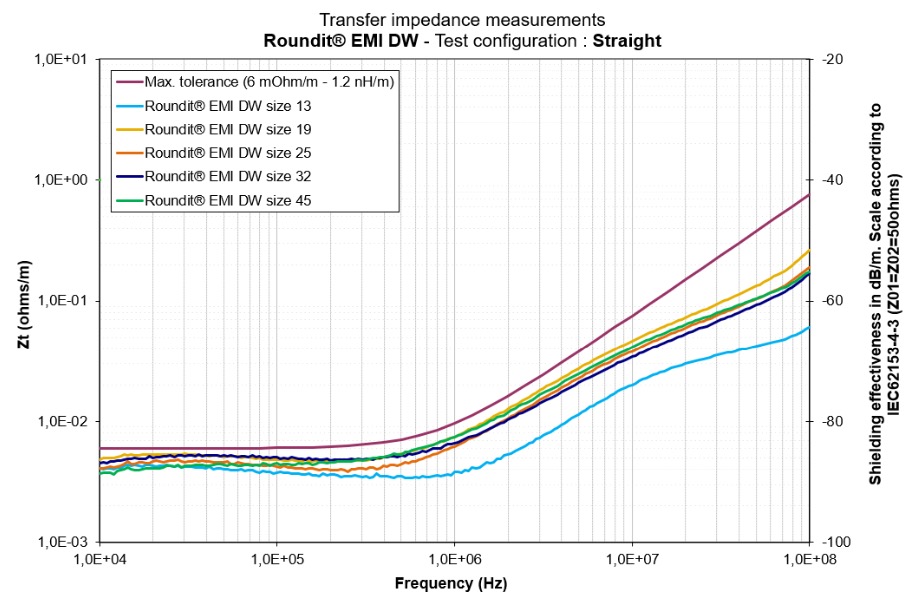

    Transfer Impedance

    IEC 62153-4-3 Triaxial method on straight installation
    Lt = 1.2 nH
    Stacks Image 9152

    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
