THERM-L-GARD™ A

Operating temperature up to +200°C (+392°F)

Self-adheres directly onto component

Easy installation

Provides superior protection against radiant heat

Available in custom designs

FUNCTIONS:

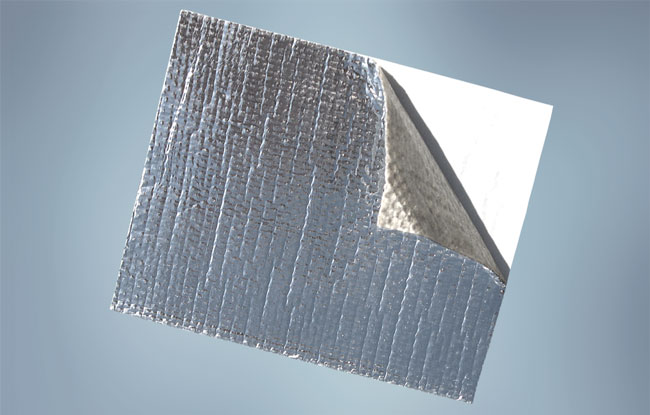

Stacks Image 6847
Open all Close all
  • Product Description
    Therm-L-Gard™ A is a woven fiberglass fabric with aluminum foil laminated to its outer layer and a pressure sensitive adhesive on the inner layer. The unique multipolymer adhesive exhibits high adhesion to low surface energy plastics such as HDPE, polypropylene and gas filled polypropylene.

    Therm-L-Gard A provides superior protection from radiant heat for plastic components and areas where a self-adhering, thermal protection system is required. Therm-L-Gard A can also be applied to metal heat shields to increase their thermal performance and slit to custom widths and lengths or die-cut to complex geometric shapes.
  • Typical Applications

    • Any area where self-adhering thermal protection system is required
    • Blow-molded Plastic Components

  • Datasheet Downloads
  • Construction and Typical Product Characteristics
    ASTM-D1777: Thickness | Average = .0180 / .4559 (in/mm)

    ASTM-D3776: Weight | Average = 499.26 / .92032 (in/mm)
  • Availability
    Therm-L-Gard A is available in a variety of complex geometric shapes. Please consult with the factory for dimensional limitations and tolerances. Tooling charges vary by design. Specifications are subject to change without notice. Finish is aluminum.
  • Product Testing

    Performance Data – Therm-L-Gard™ A

    For optimal viewing experience on a mobile device, rotate to a landscape orientation.

    Property
    Test Method
    Result
    Operating Temperature
    Up to +200°C (+392°F)
    Horizontal Flammability
    SAE J369
    Self-extinguishing
    Tear Resistance, N
    • Warp
    • Fill

    ASTM D 1117
    ASTM D 5733

    188
    193
    Tensile Strength, N/cm2
    • Warp
    • Fill
    ASTM D 5035

    5,741 (warp)
    7,934 (fill)
    Low Temperature Resistance
    BH100-106C
    Product resistant to -40°C (-40°F)
    All numeric performance data shows average or typical values. Please consult your sales representative for product drawings, test reports and OEM approvals.
